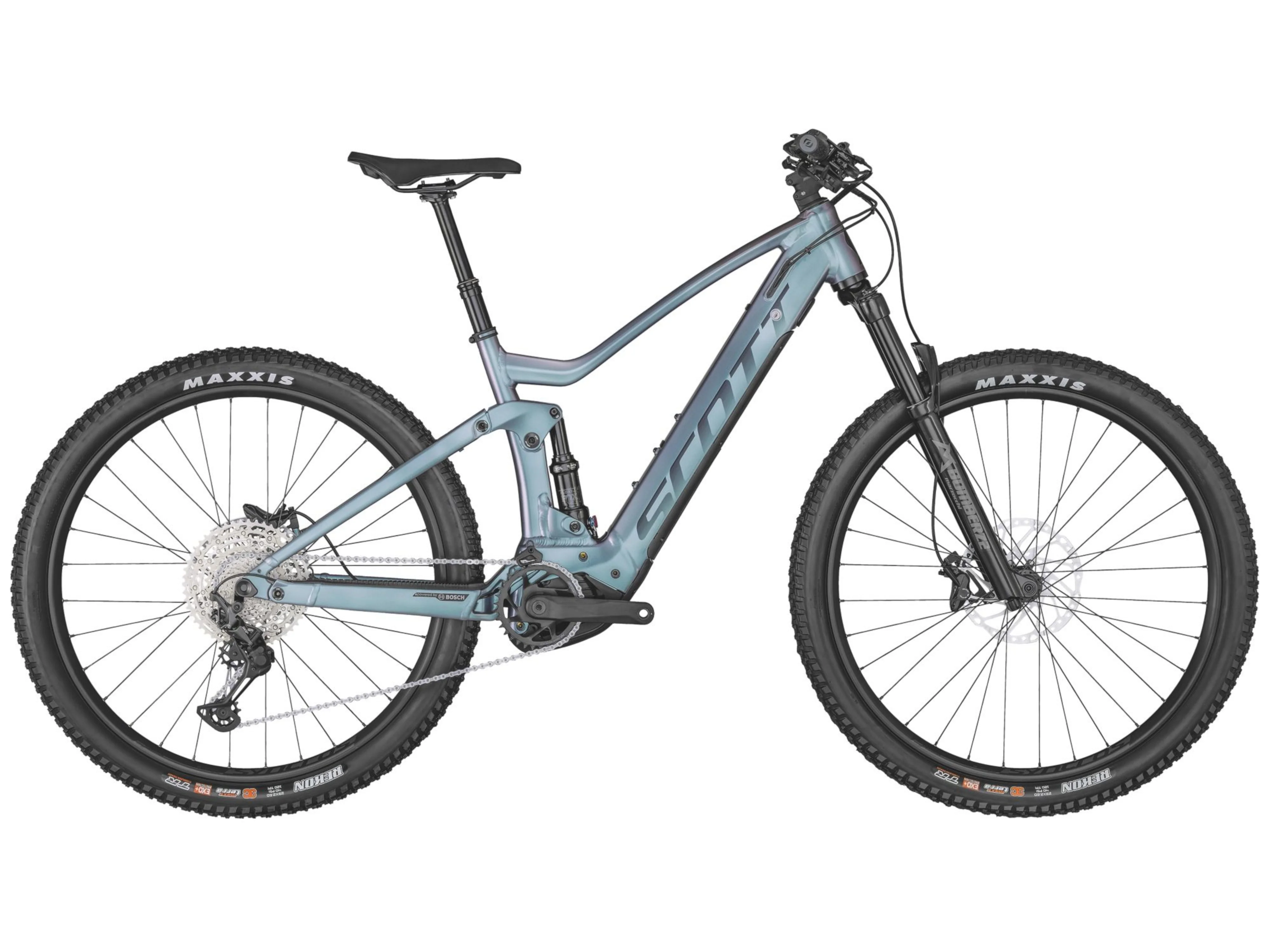

Scott Strike eRide 920

The Full Scoop on the Scott Strike eRide 920

• Description
• Motor System
• Components
• Extras
• Geometry

•
  The Scott Strike eRIDE 920 designed for all day trail riding. Supreme integration and progressive geometry paired with a powerful new Bosch drive unit deliver much more than a great ride. What you get, rather, is a stellar experience up and down the mountain, time and time again. Strike eRIDE - boss the trails.

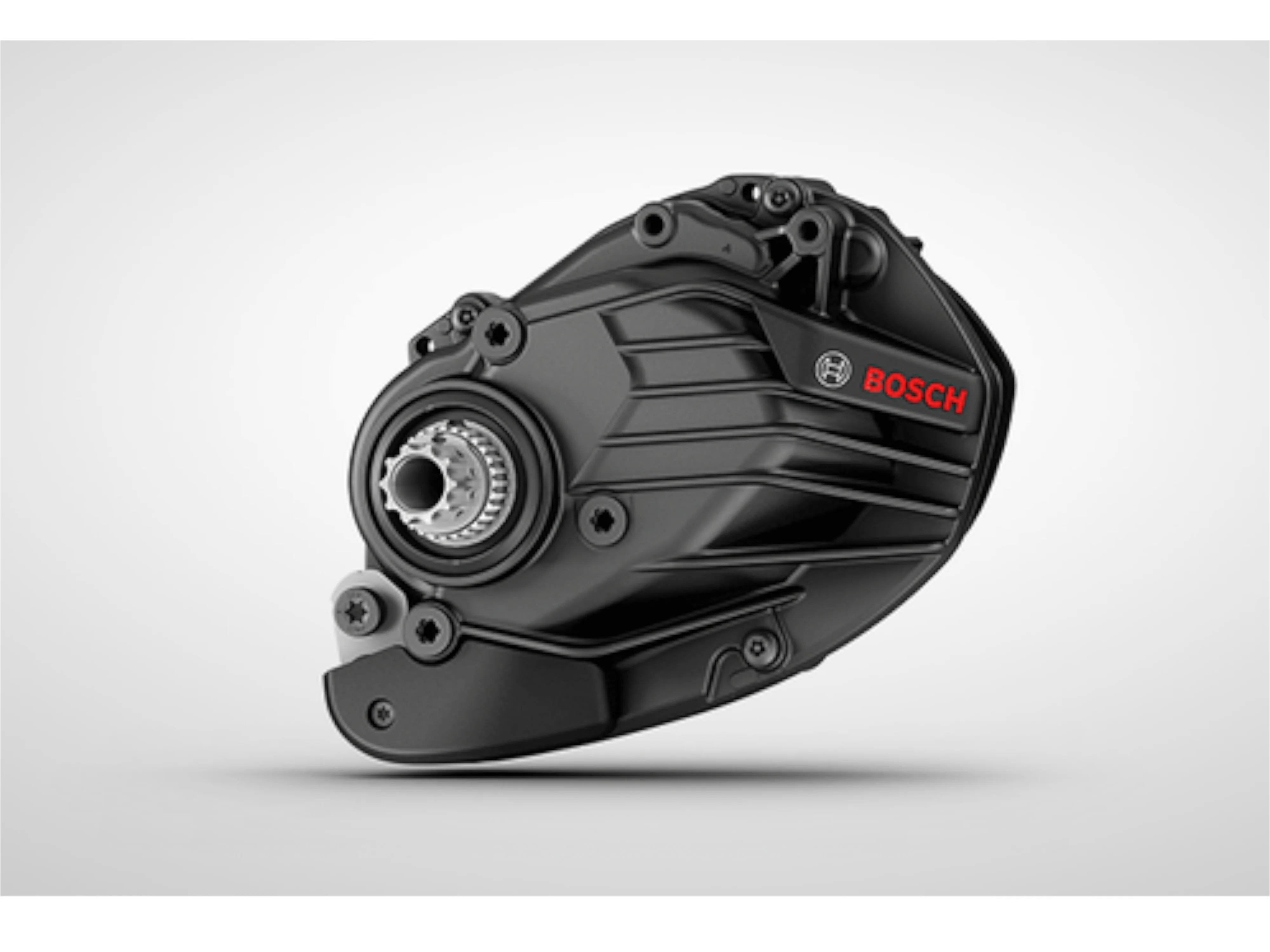

• Motor	Bosch Performance CX EU: 25kmh / INT: 20mph
  Battery	PowerTube 750Wh
  Display	Bosch LED Remote & Kiox 300
  Charger	4A Charger

• Frame	Alloy Frame & Link,  Integrated cables
  Fork	RockShox Domain Air 15x110mm QR axle / 1.8" Tapered Steerer ,Reb. Adj. / 2 Modes / Lockout / 160mm travel / E-Bike
  Rear Shock	FOX NUDE T eRIDE EVOL / Trunnion SCOTT custom w. travel / geo adj. 3 modes: Lockout-Traction Control-Descend custom large air volume / DPS / Reb. Adj. Travel 160-115-Lockout / 205X60mm
  Front Brake	Shimano XT / BR-M8120 4 Piston
  Rear Brake	Shimano XT / BR-M8120 4 Piston
  Rear Derailleur	Shimano XT 12 speed
  Shift Levers	Shimano SL-M8100
  Chain	Shimano CN-M8100
  Cassette	Shimano CS-M8100 / 10-51 T
  Crankset	FSA CK-745 165mm / 34T
  Chain Ring	FSA WB604 / 34T / DM / Steel
  Chain Guard	Spec not provided
  Rims	Syncros MD30 / 32H / 30mm / Pin Joint Tubeless ready
  Front Hub	Formula CL-811 / 15x110mm
  Rear Hub	Formula ECT-1481 / Boost 148x12mm
  Front Tire	Maxxis Dissector 29x2.6" 120TPI Foldable Bead EXO+ / TR Tubeless ready 3C Maxx Terra
  Rear Tire	Maxxis Dissector 29x2.6" 120TPI Foldable Bead EXO+ / TR Tubeless ready 3C Maxx Terra
  Handlebar	Syncros Hixon 1.5 / Alloy 7050D.B. 12mm rise / 9° / 780mm Syncros Pro lock-on grips
  Stem	Syncros AM1.5 / 7050 Alloy 31.8mm / 4° / 1 1/8
  Headset	Acros / 1.8" ZS66 OD74 / integr. Cable
  Grips	Spec not provided
  Saddle	Syncros Tofino 1.5 Regular Titanium rails
  Seatpost	FOX Transfer Dropper Post 31.6mm / S size 125mm / M & L size 150mm / XL size 175mm

• Pedals	Spec not provided
  Front Light	Not applicable
  Rear Light	Not applicable
  Kickstand	Not applicable
  Rear Carrier	Not applicable
  Fenders	Not applicable
  Bell	Not applicable
  Lock	Not applicable
  Mirror	Not applicable

• 		S	M	L	XL
  HEAD TUBE ANGLE	A	64.5 °	65.0 °	65.0 °	65.0 °
  HEAD TUBE LENGTH	B	4.7 IN	4.9 IN	5.3 IN	5.7 IN
  TOP TUBE HORIZONTAL	C	22.8 IN	23.4 IN	24.6 IN	25.8 IN
  STANDOVER HEIGHT	D	30.2 IN	30.2 IN	30.2 IN	30.2 IN
  BB OFFSET	E	-1.2 IN	-1.2 IN	-1.2 IN	-1.2 IN
  BB HEIGHT	F	13.7 IN	13.7 IN	13.7 IN	13.7 IN
  WHEEL BASE	G	48.1 IN	48.5 IN	49.8 IN	51.0 IN
  BB CENTER TO TOPTUBE CENTER	H	-	-	-	-
  BB CENTER TO TOP OF SEATTUBE	I	16.2 IN	17.3 IN	18.5 IN	19.7 IN
  SEAT ANGLE	J	77.0 °	76.9 °	76.9 °	76.8 °
  CHAINSTAY	K	17.9 IN	17.9 IN	17.9 IN	17.9 IN
  REACH	L	17.0 IN	17.6 IN	18.6 IN	19.7 IN
  STACK	M	25.0 IN	25.3 IN	25.6 IN	26.0 IN
  STEM LENGTH	N	2.0 IN	2.0 IN	2.4 IN	2.4 IN
  TRAIL	O	5.2 IN	5.1 IN	5.1 IN	5.1 IN
  FORK LENGTH	P	22.3 IN	22.3 IN	22.3 IN	22.3 IN
  MAXIMUM SEATPOST INSERTION	Q	9.6 IN	10.4 IN	11.8 IN	12.6 IN
  CRANK LENGTH	R	6.5 IN	6.5 IN	6.5 IN	6.5 IN
