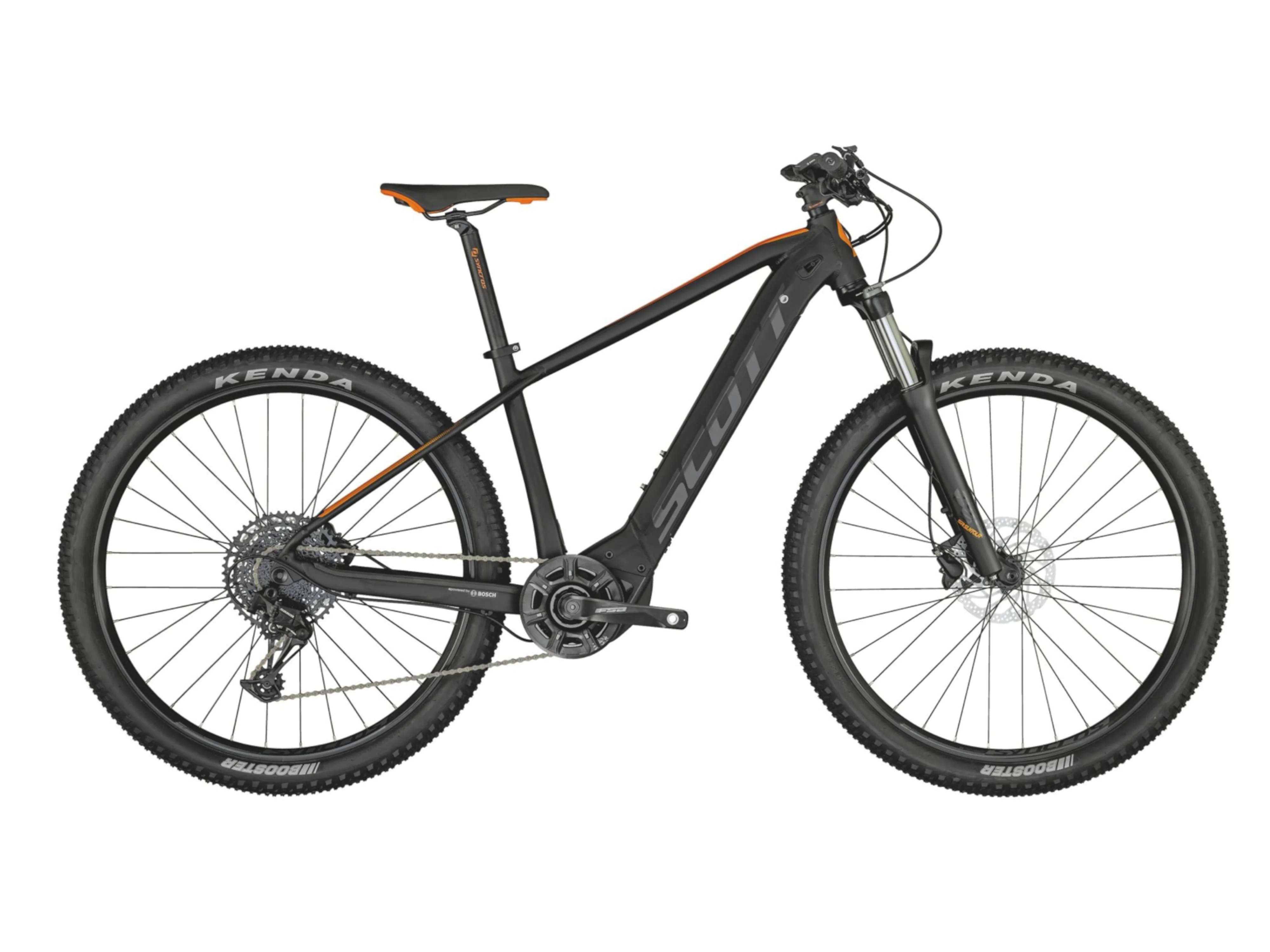

Scott Aspect eRide 920 Black

The Full Scoop on the Scott Aspect eRide 920

• Description
• Motor System
• Components
• Extras
• Geometry

• The SCOTT Aspect eRIDE 920 features proven electric assist technology in a comfortable off-road package. With an integrated battery, and powered by a 625wh Bosch drive system, the Aspect eRIDE will give you hours of trail riding energy. Rack and fender available.

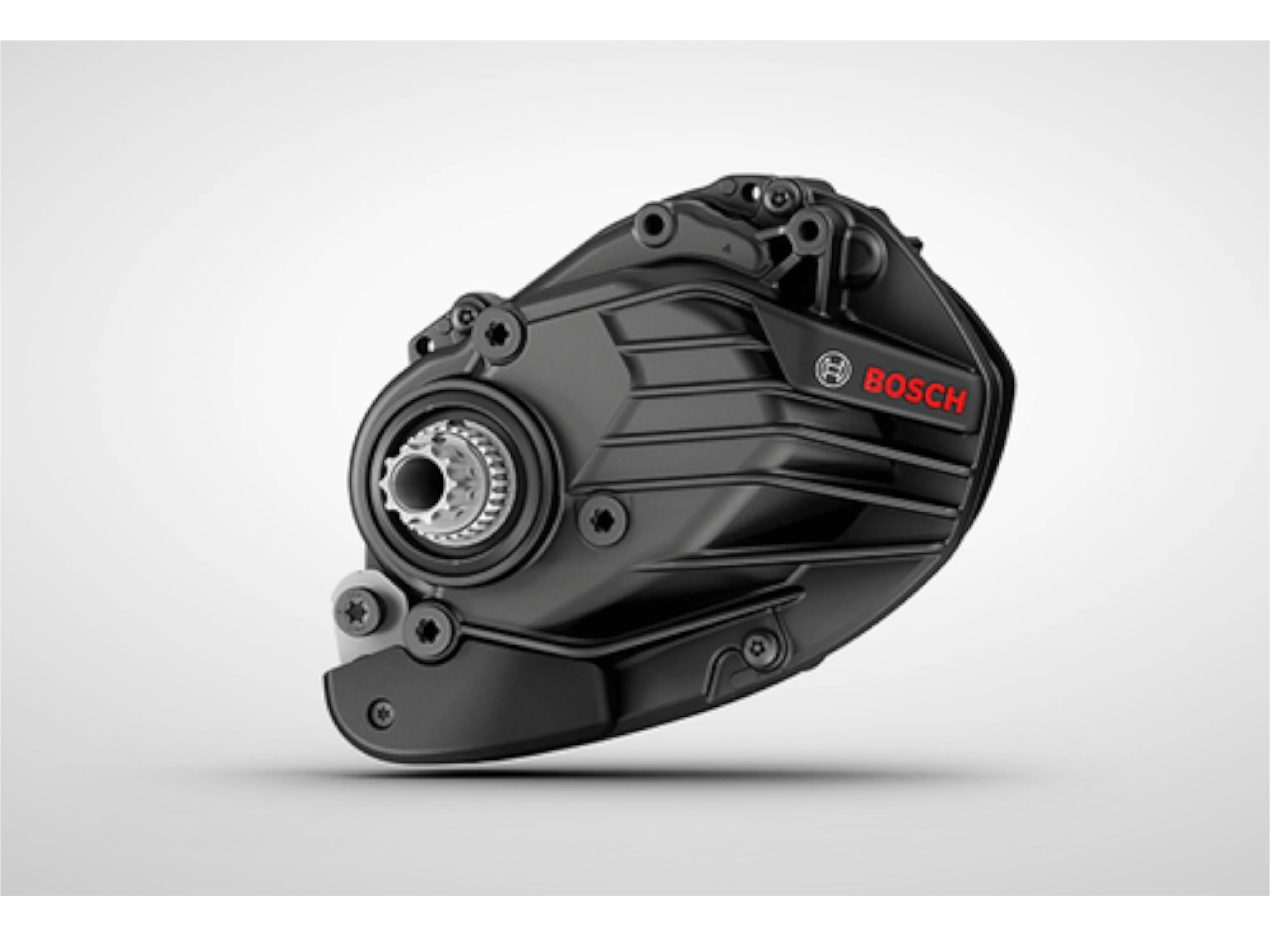

• Motor	Bosch Performance CX EU: 25kmh / INT: 20mph

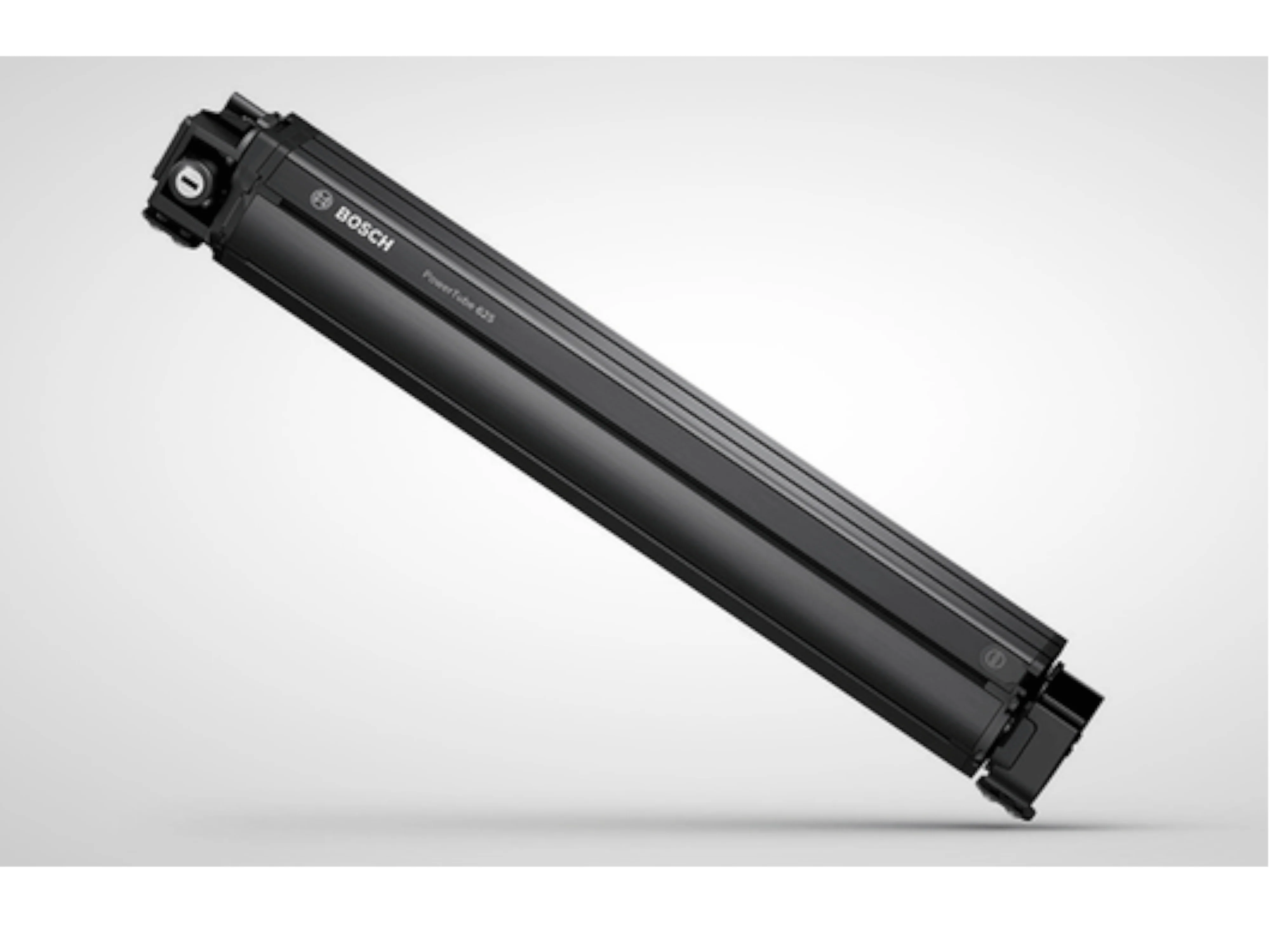

  Battery	PowerTube 625Wh
  Display	Bosch Purion
  Charger	4A Charger

• Frame	Alloy Frame, Integrated cable
  Fork	SR Suntour XCM34 Coil 15x110mm QR axle / Tapered Steerer Remote Lockout / 120mm travel
  Rear Shock	Not applicable
  Front Brake	Shimano BR-MT200 Disc / SM-RT30 CL 180mm
  Rear Brake	Shimano BR-MT200 Disc / RT-EM300 CL 180mm
  Rear Derailleur	SRAM NX Eagle / 12 Speed
  Shift Levers	SRAM SX Eagle Single Click
  Chain	SRAM SX Eagle
  Cassette	SRAM PG1210 / 11-50 T
  Crankset	FSA CK-220 / 165mm
  Chain Ring	SRAM Eagle 36T DM w/CG / Steel
  Chain Guard	Spec not provided
  Rims	Syncros MD30 / 32H / 30mm / Pin Joint Tubeless ready
  Front Hub	Formula CL-811 / 15x110mm
  Rear Hub	Formula ECT-1481 / Boost 148x12mm
  Front Tire	Kenda Booster 29x2.6" / 30TPI
  Rear Tire	Kenda Booster 29x2.6" / 30TPI
  Handlebar	Syncros 3.0 720mm / 31.8mm / 9° / 12mm rise Syncros Comfort lock-on grips
  Stem	Syncros 3.0 / 7° / Black
  Headset	Syncros OE / Tapered 1.5"-1 1/8" semi integ. OD 50/62mm / ID 44/56mm
  Grips	Spec not provided
  Saddle	Syncros ER2.5
  Seatpost	Syncros 3.0 / 31.6mm

• Pedals	Not applicable
  Front Light	Not applicable
  Rear Light	Not applicable
  Kickstand	Not applicable
  Rear Carrier	Not applicable
  Fenders	Not applicable
  Bell	Not applicable
  Lock	Not applicable
  Mirror	Not applicable

• 		S	M	L	XL
  HEAD TUBE ANGLE	A	67.5 °	67.5 °	67.5 °	67.5 °
  HEAD TUBE LENGTH	B	4.3 IN	4.7 IN	5.1 IN	5.5 IN
  TOP TUBE HORIZONTAL	C	22.8 IN	23.6 IN	24.4 IN	25.2 IN
  STANDOVER HEIGHT	D	31 IN	31.9 IN	33 IN	33.6 IN
  BB OFFSET	E	2.2 IN	2.2 IN	2.2 IN	2.2 IN
  BB HEIGHT	F	12.6 IN	12.6 IN	12.6 IN	12.6 IN
  WHEEL BASE	G	45.7 IN	46.5 IN	47.3 IN	48.1 IN
  BB CENTER TO TOPTUBE CENTER	H	-	-	-	-
  BB CENTER TO TOP OF SEATTUBE	I	15.7 IN	17.3 IN	18.9 IN	20.5 IN
  SEAT ANGLE	J	75.2 °	75 °	74.9 °	74.7 °
  CHAINSTAY	K	18.9 IN	18.9 IN	18.9 IN	18.9 IN
  REACH	L	15.7 IN	17.3 IN	18.9 IN	20.5 IN
  STACK	M	25.0 IN	25.4 IN	25.7 IN	26.1 IN
  TRAIL	O	3.6 IN	3.8 IN	3.8 IN	3.8 IN
