Riese and Muller Roadster Mixte Touring

The Full Scoop on the Riese and Muller Roadster Mixte Touring

• Description
• Motor System
• Components
• Extras
• Geometry

•

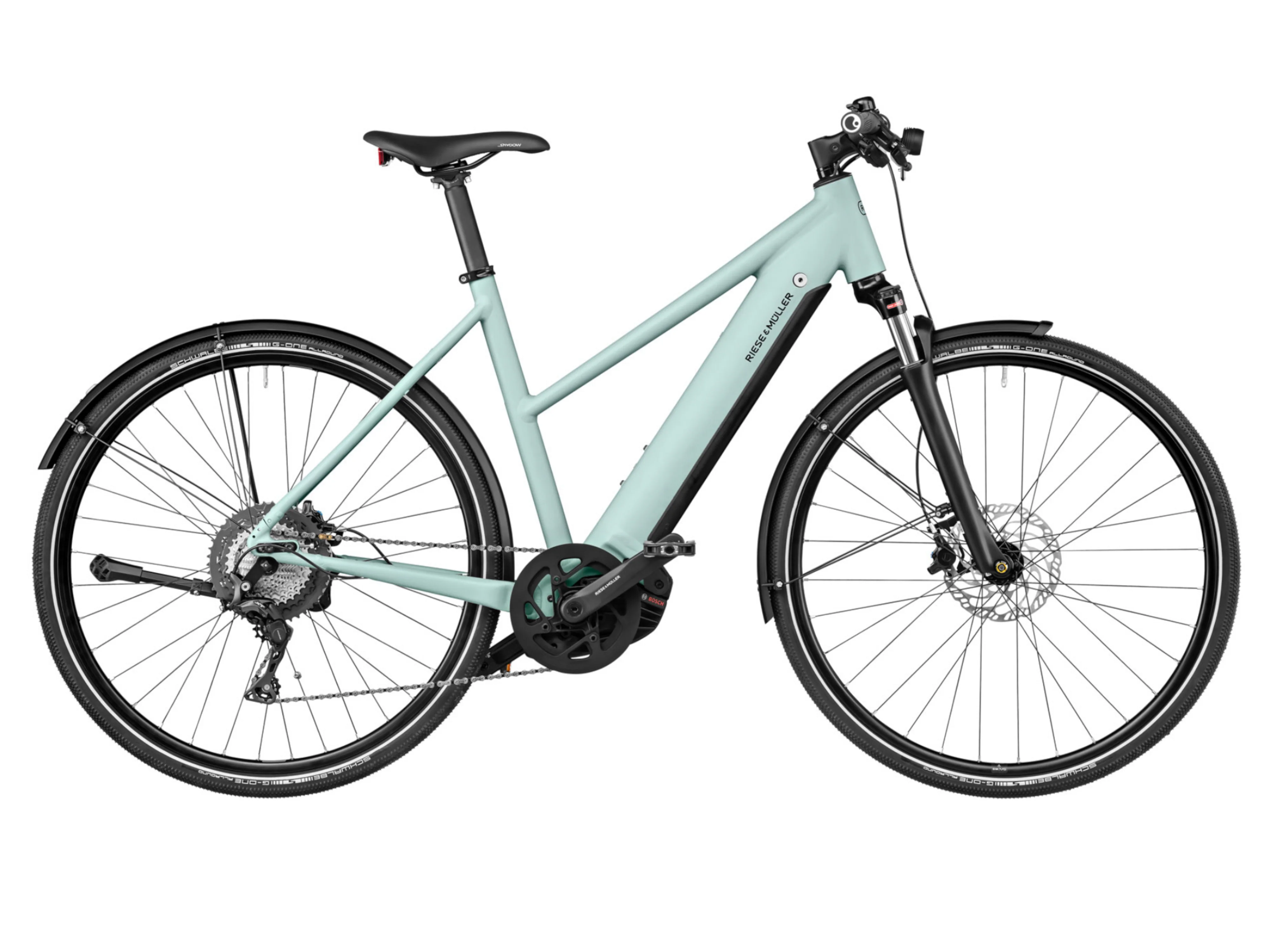

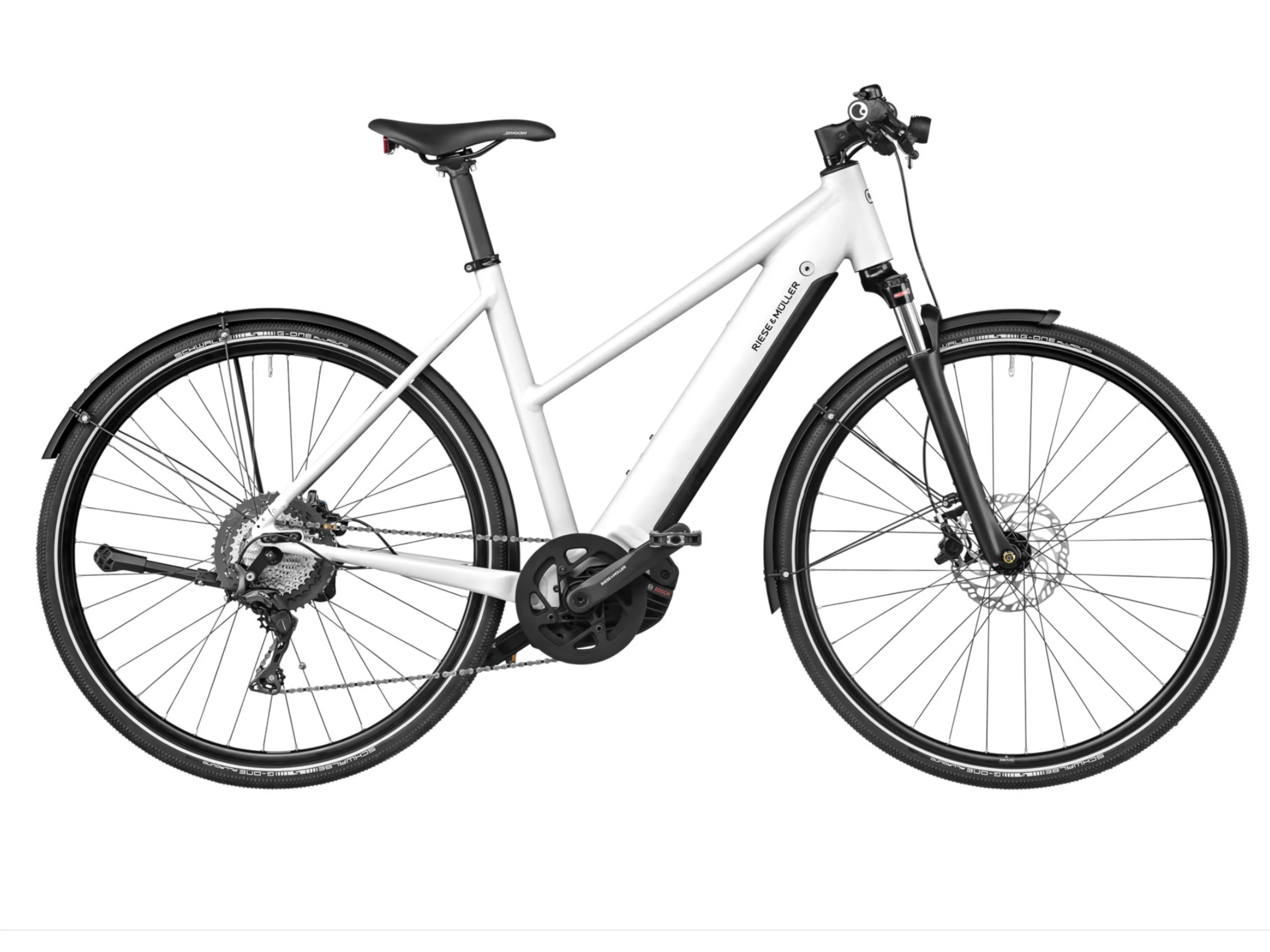

  The Riese and Muller Roadster Mixte Touring was made to tackle fast-paced city life. Thanks to the slightly lowered top tube, you can swing easily onto your eBike and ride past everyone effortlessly with a battery capacity of 625 Wh. Riese and Muller Roadster Mixte Touring's optimum weight distribution also makes it extremely agile and safe to handle. This sportiness, combined with comfortable features, makes the Riese and Muller Roadster Mixte Touring the ideal urban bike.

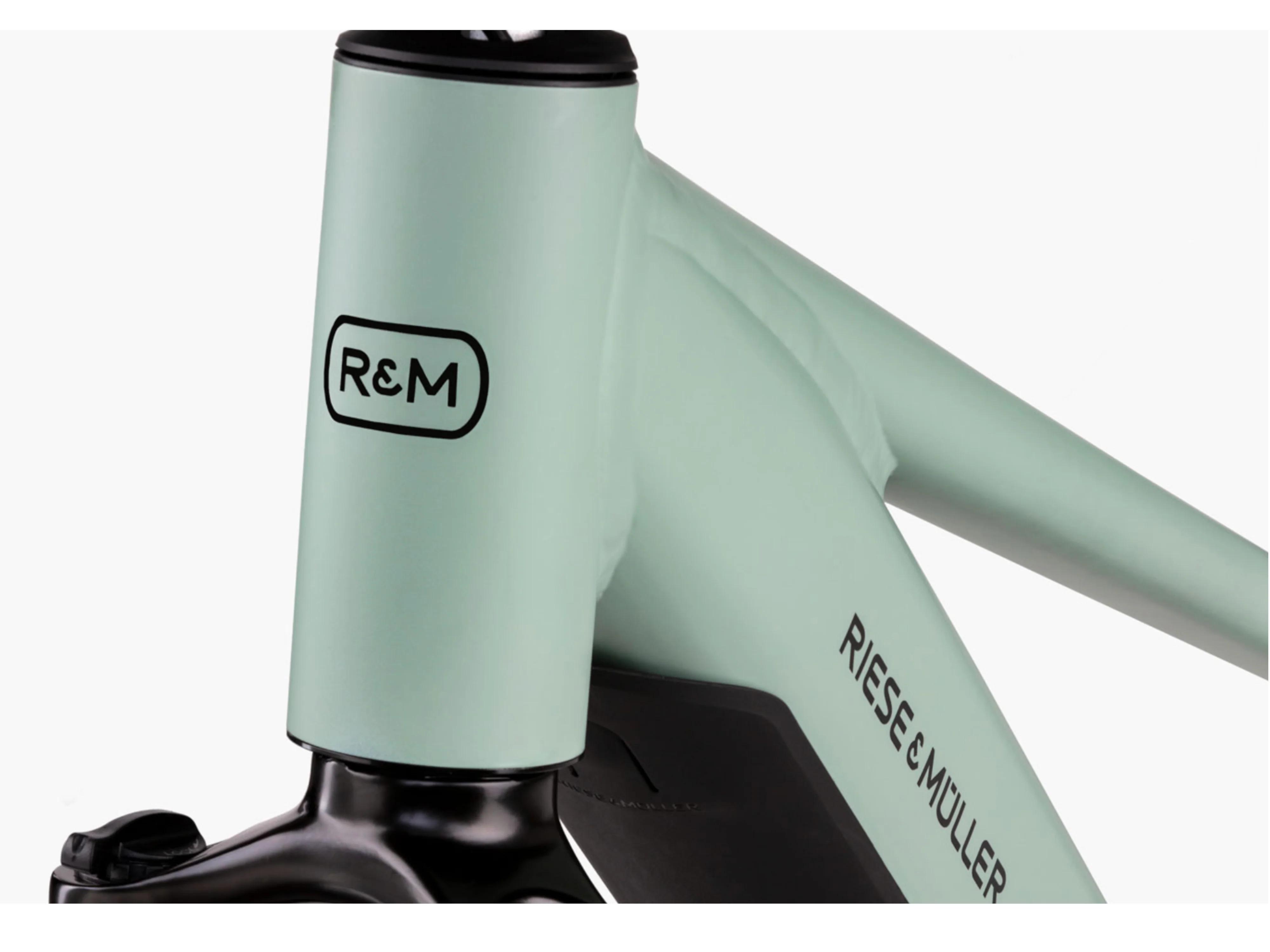

  Mixte Vario HS's slim frame design gives it a sporty character: the frame’s sleek design is reminiscent of conventional bikes, while it meets the highest standards of outstanding German engineering. The Riese and Muller Roadster Mixte Touring's Bosch Performance Line CX motor, boasting 85 Nm, and the integrated battery with 625 Wh are installed in a balanced position for top agility and riding enjoyment. The integrated cabling accentuates the linear appearance.

  Components subject to manufacturer changes..

  * May differ depending on the availability in your country, design or configuration of the model. The specification table indicates all available components for this model – not just the basic equipment. Some of the options listed are only available for a surcharge.

• Motor	Performance Line CX (Gen4)
  Battery	Bosch PowerTube 625 Vertical, 36 V, 16,7 Ah/625Wh*

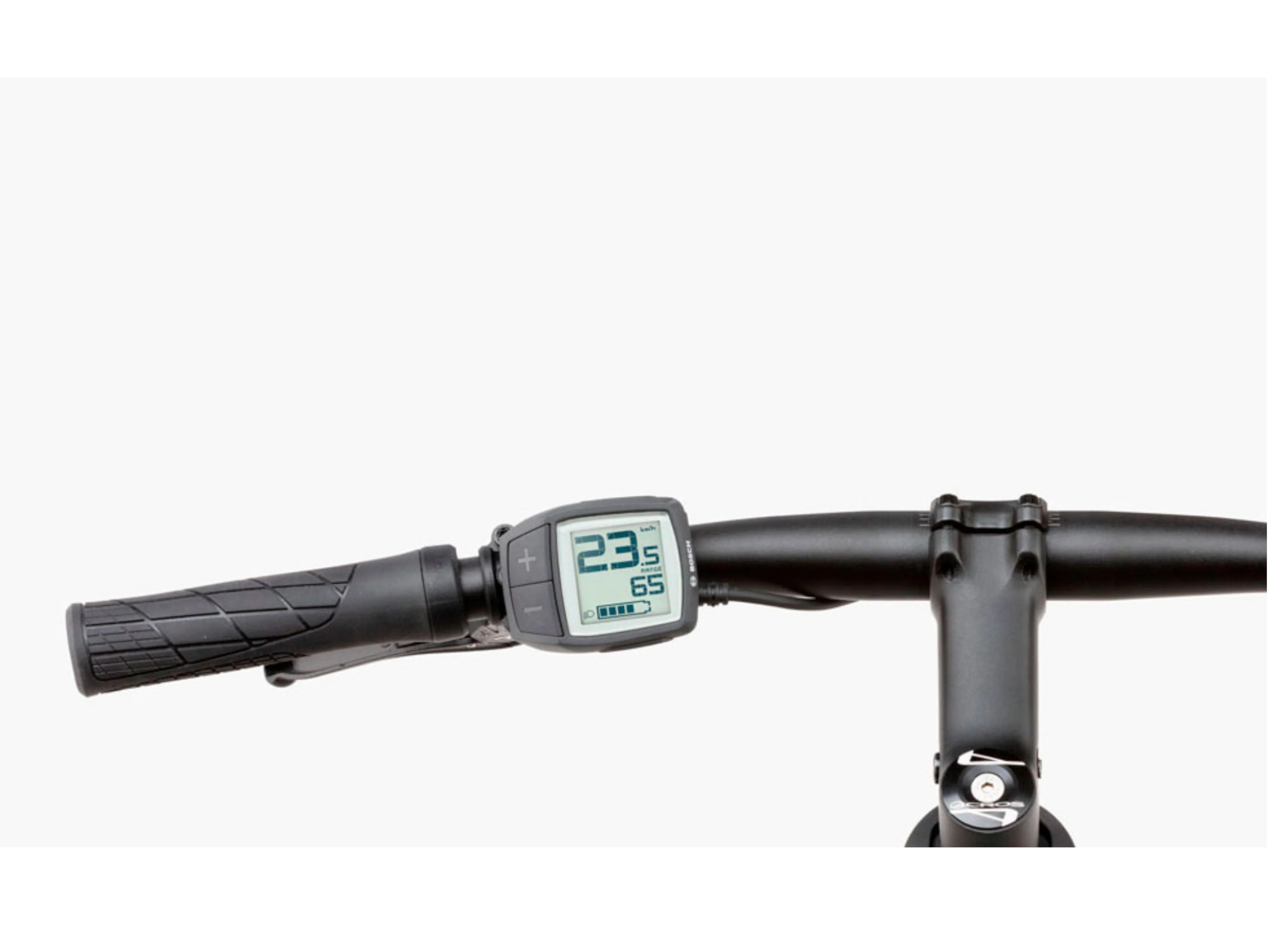

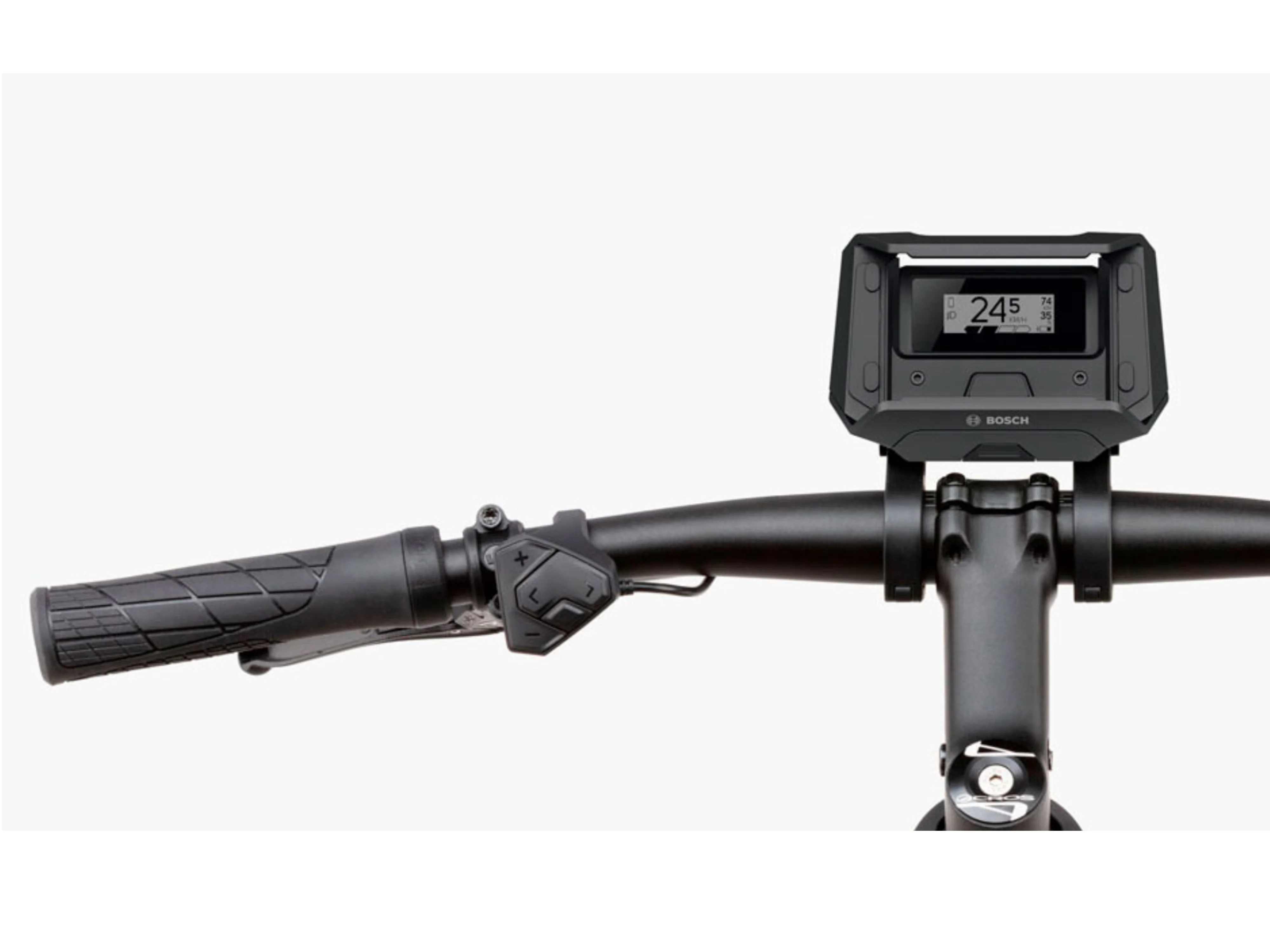

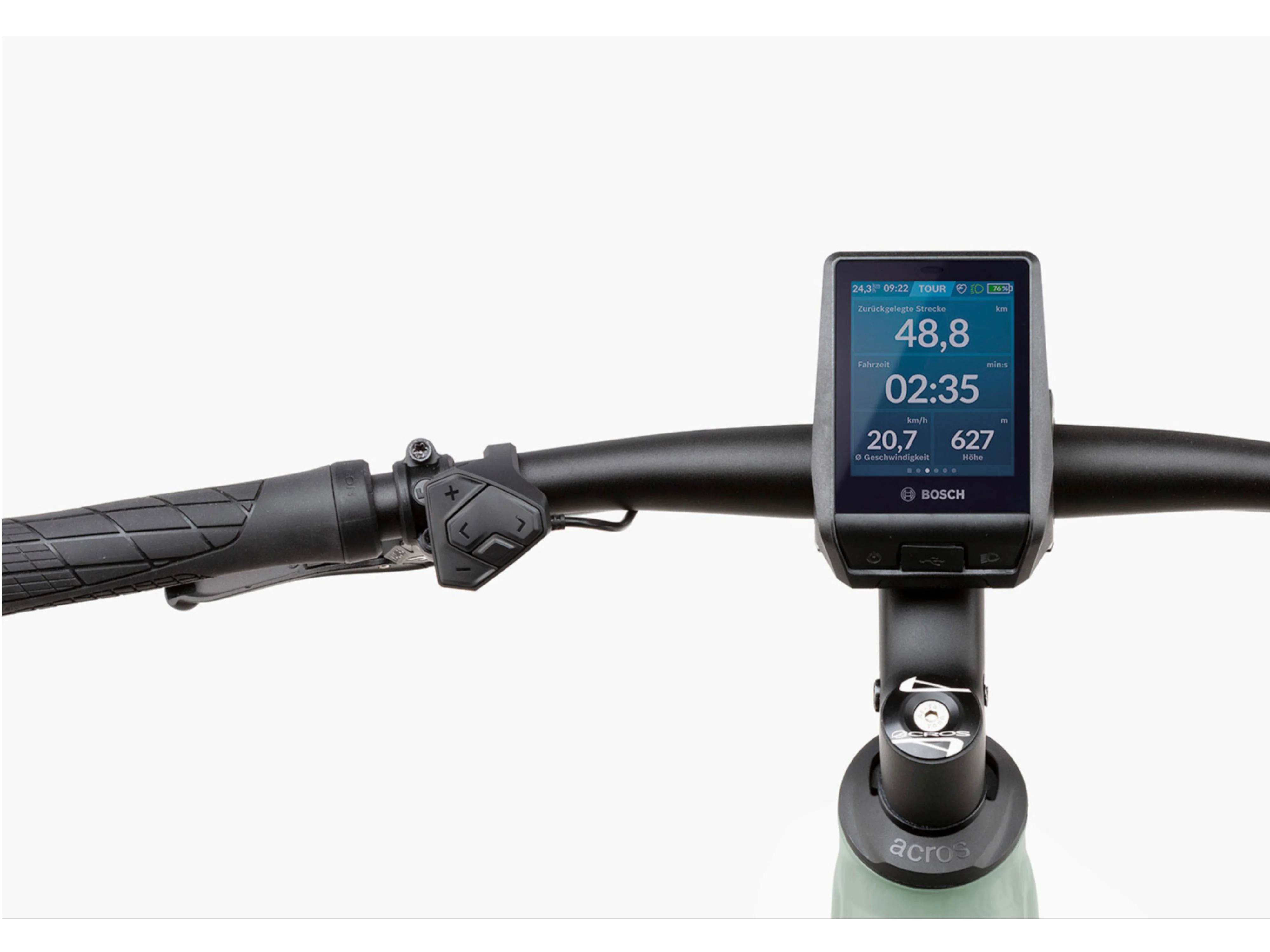

  Display	Bosch Purion; Bosch Nyon*; Bosch SmartphoneHub*
  Charger	Bosch 4a

• Frame	crystal white*; salvia matt*
  Fork	Suntour NCX 28", tapered
  Rear Shock	Not applicable
  Front Brake	Magura MT4, disc brake; Magura MT5, disc brake
  Rear Brake	Magura MT4, disc brake; Magura MT5, disc brake
  Rear Derailleur / Pinion	Shimano Deore XT 11-S Linkglide
  Shift Levers	Shimano Deore XT 11-S Linkglide
  Chain	KMC X11 ( 125x )
  Cassette	Shimano XT 11-S 11-50 Linkglide

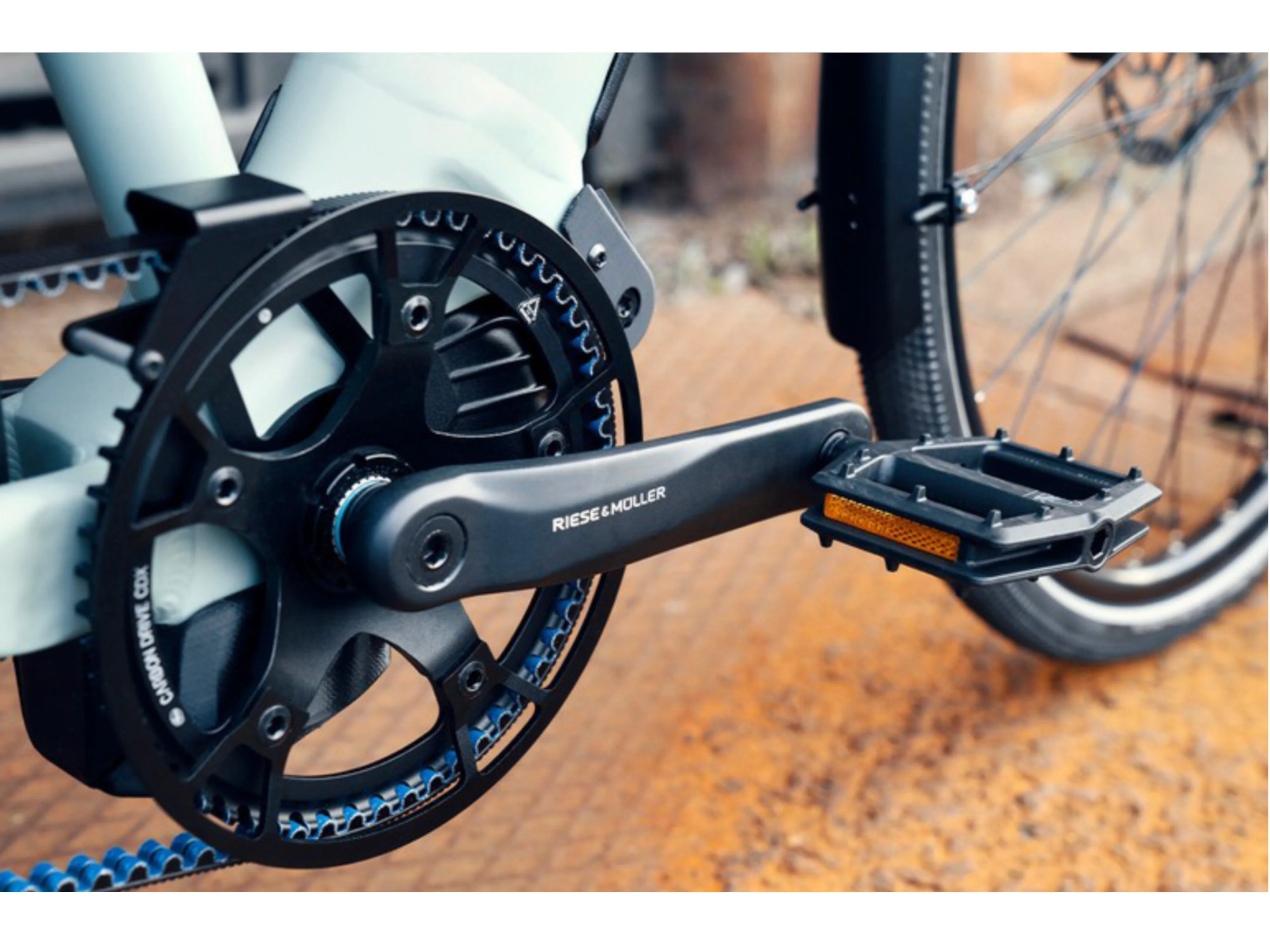

  Crankset	FSA/Riese & Müller, 170 mm
  Chain Ring	48T
  Chain Guard	Chain guard
  Rims	Mach1 650, 28"
  Front Hub	Novatec Disc 32H

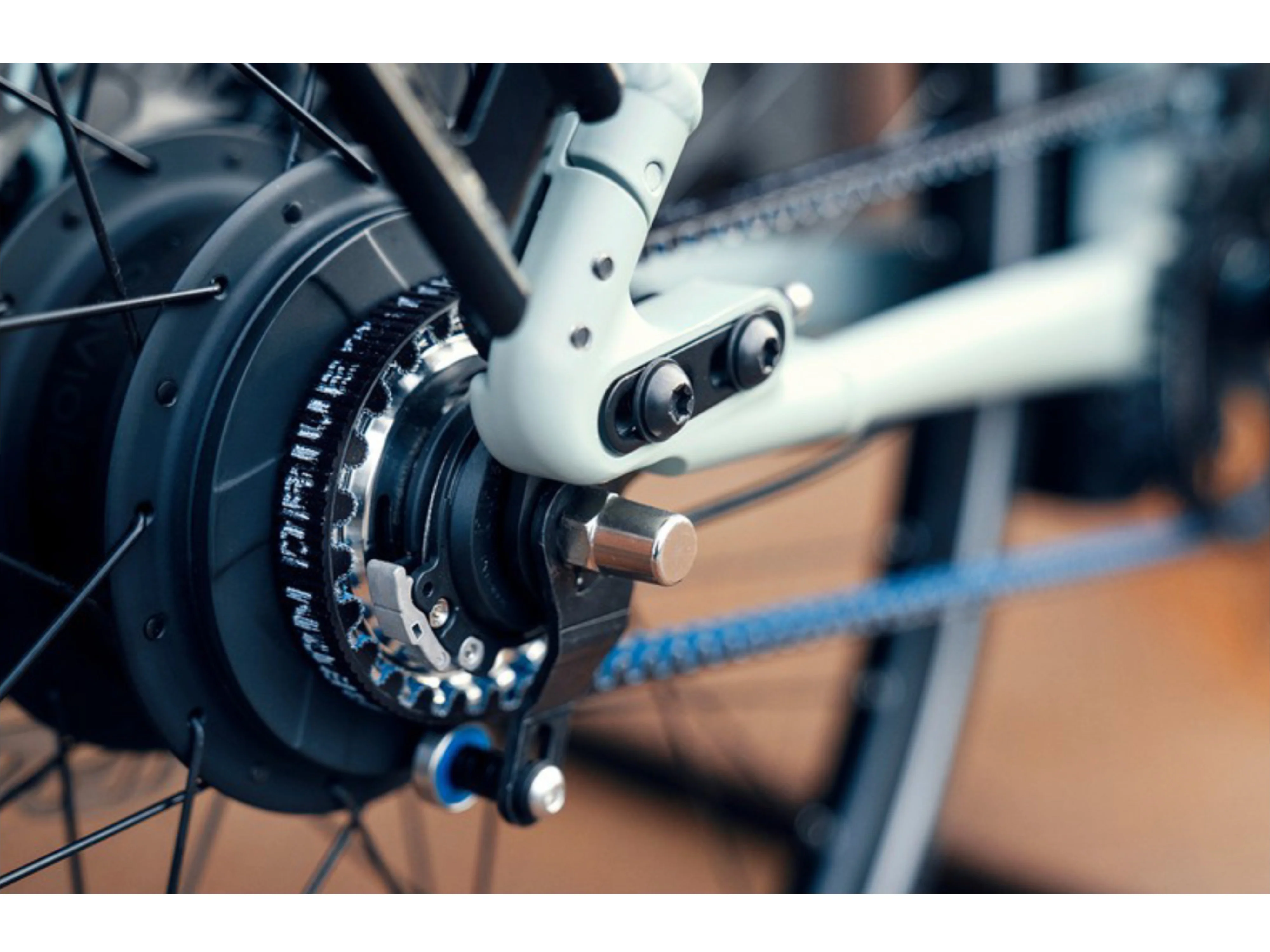

  Rear Hub	Enviolo 380, 36H
  Front Tire	Schwalbe G-One 40-622

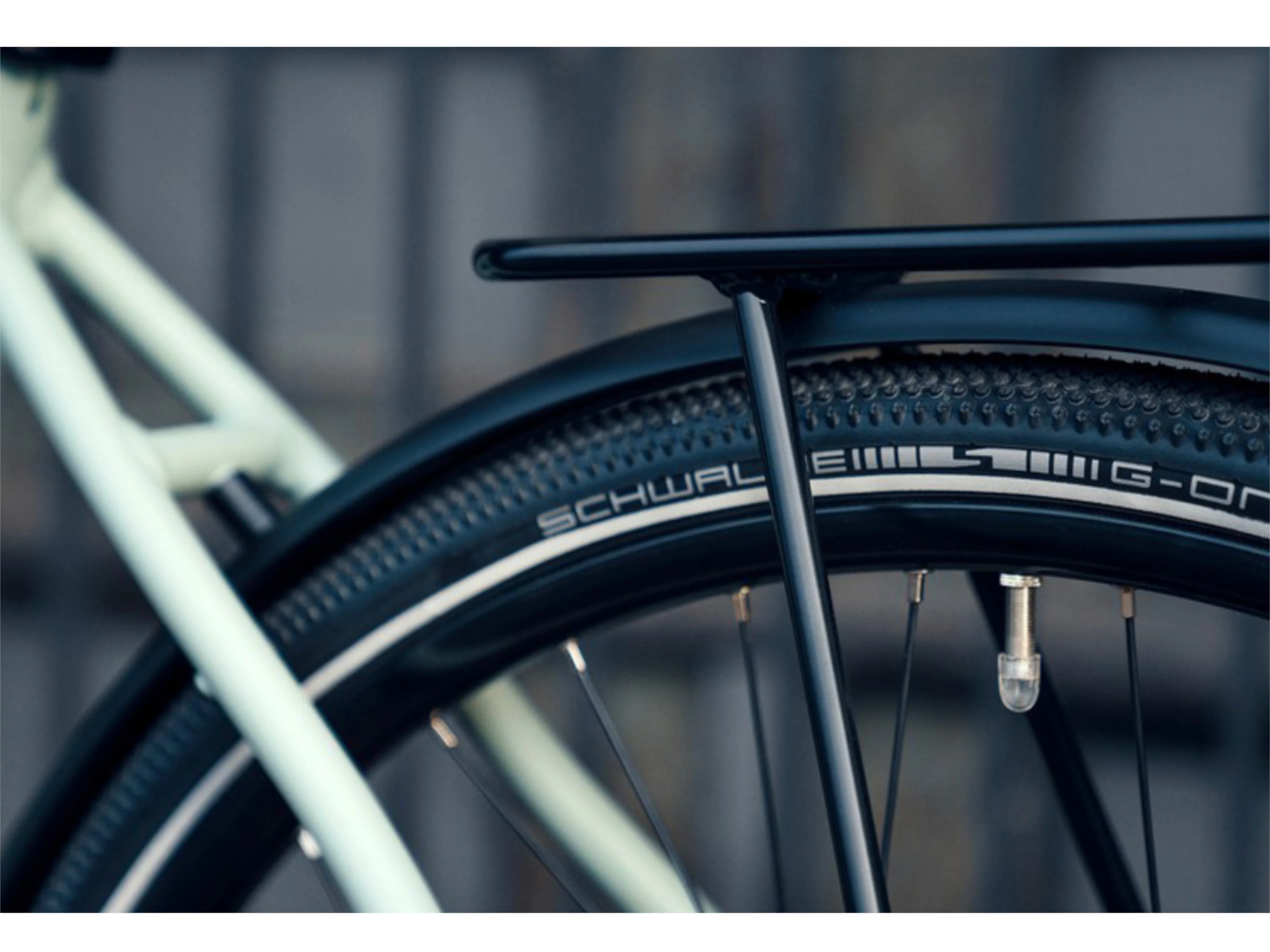

  Rear Tire	Schwalbe G-One 40-622

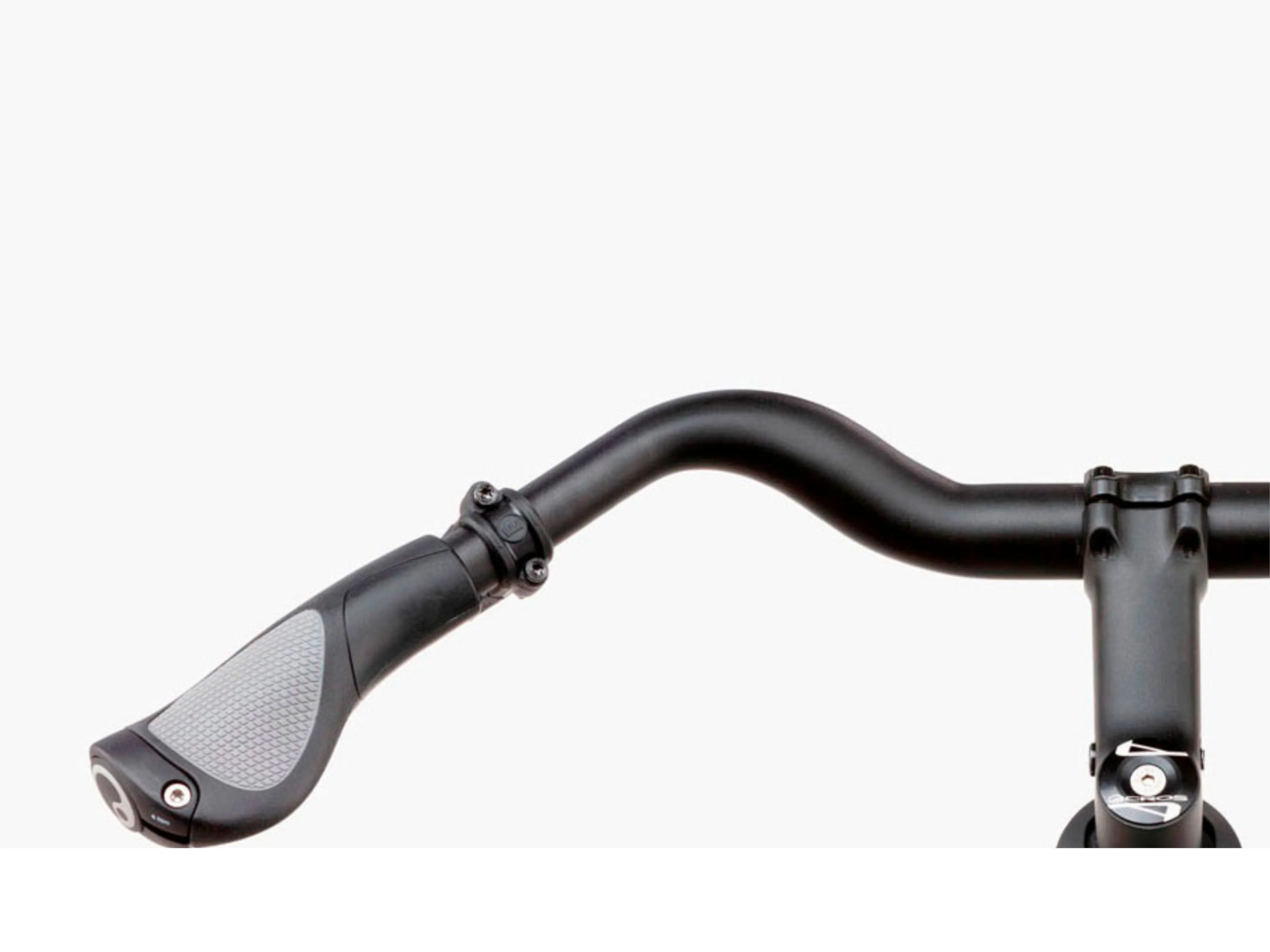

  Handlebar	Satori Horizon, 31,8 mm, 9°, B=620 mm; Satori Noirette Plus, 31,8 mm, Alu*
  Stem	Satori Stealth 6, 90 mm, +/-7°
  Headset	Acros IntegrationX, block lock
  Grips	Ergon ergonomic
  Saddle	Selle Royal Shadow
  Seatpost	Satori Trident; Satori Elegance-LT OV 34,9 x 405mm*

• Pedals	VP R&M Custom

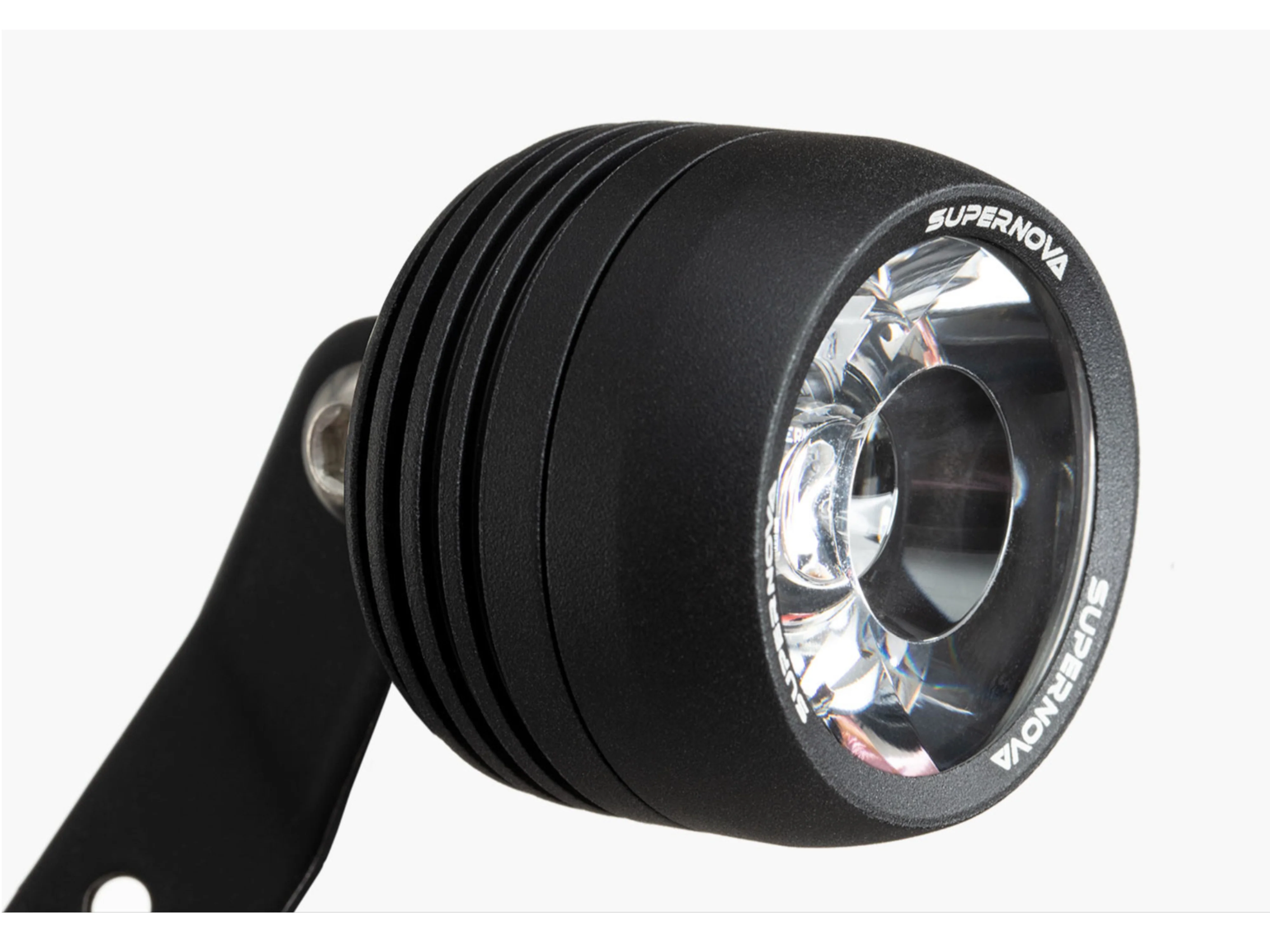

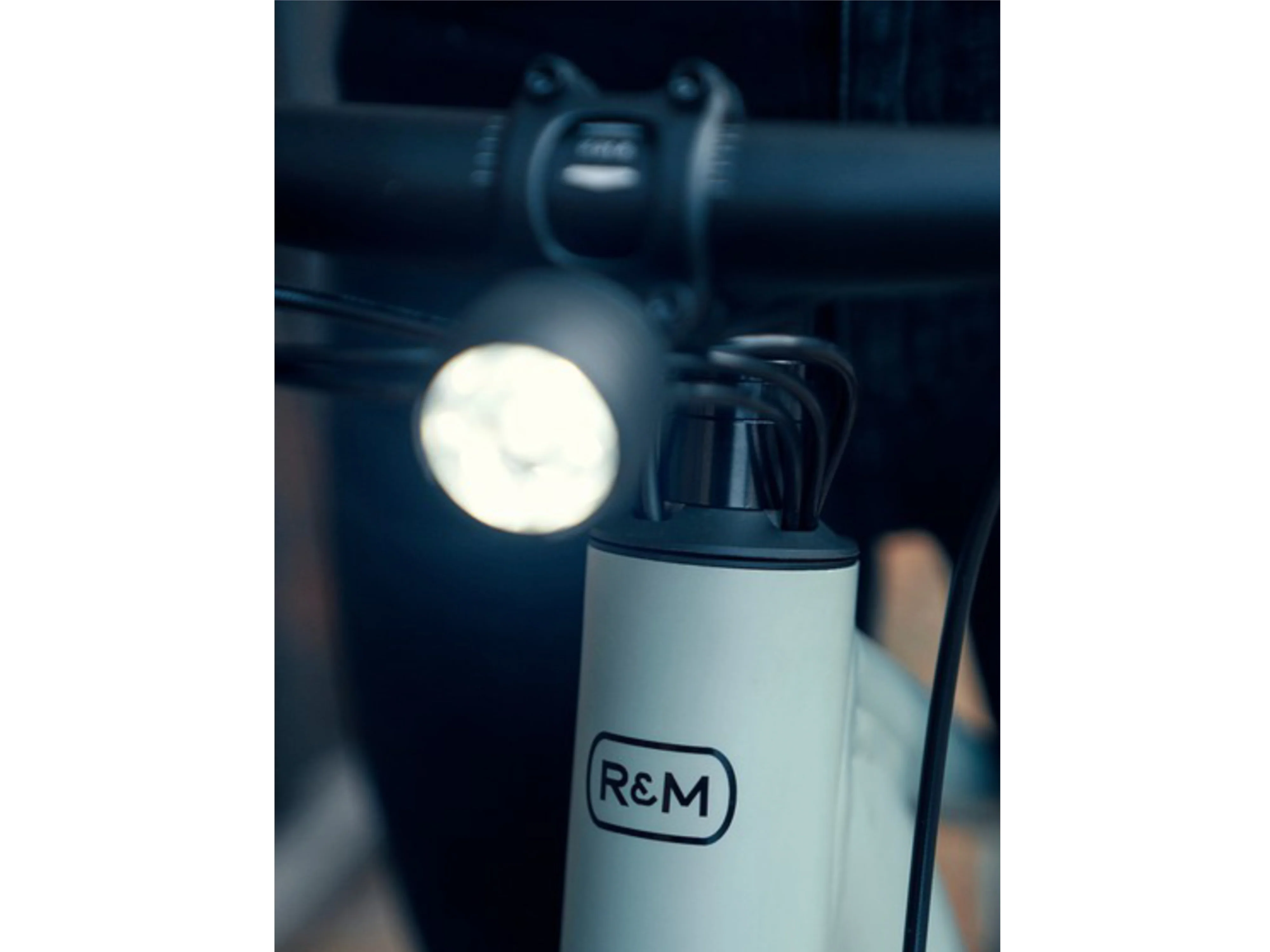

  Front Light	Supernova mini 2

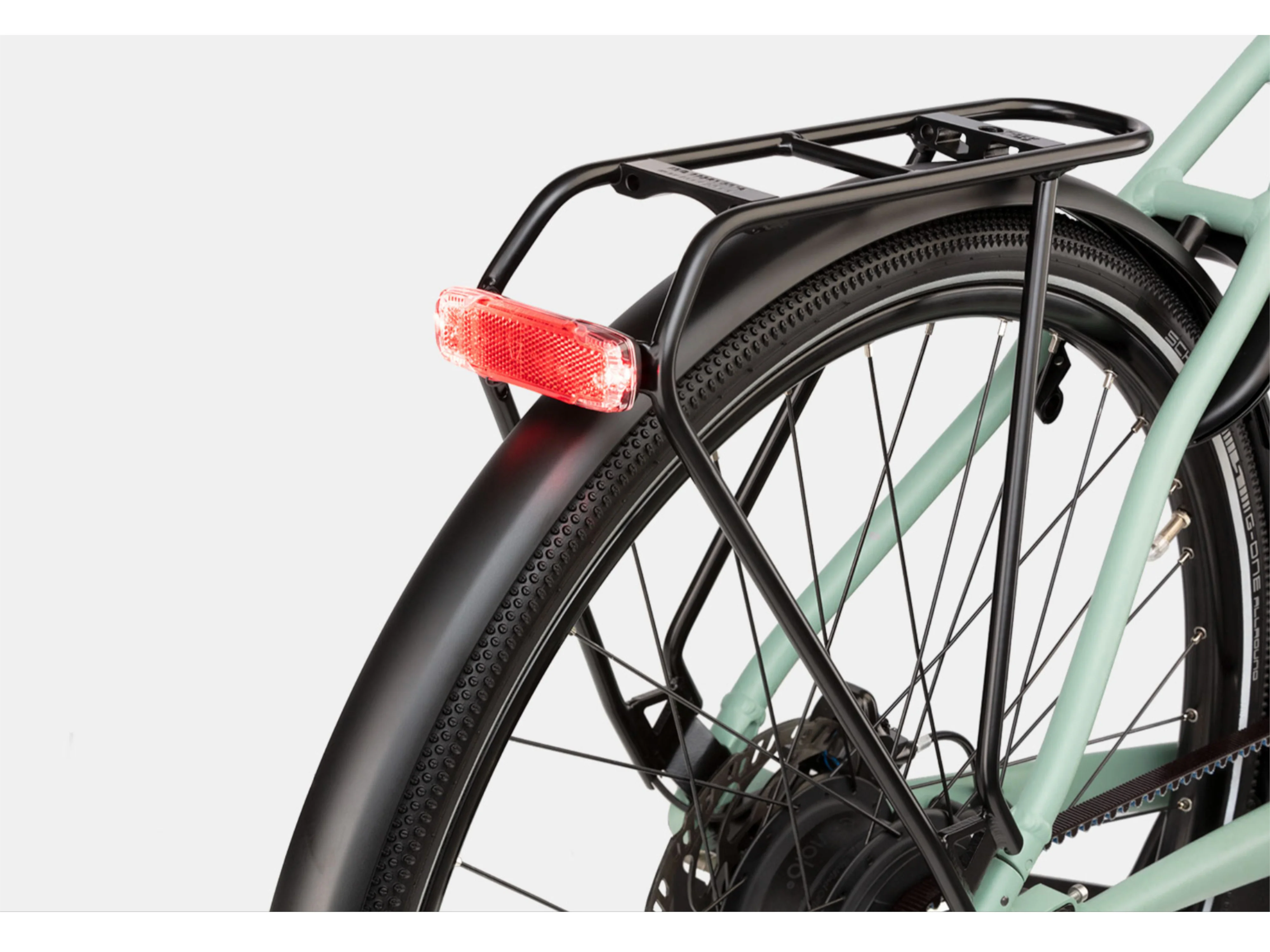

  Rear Light	Busch & Müller XelTec LED; Busch & Müller Toplight 2C LED*
  Kickstand	Ursus R78 King 2 Kickstand
  Rear Carrier	Riese & Müller, Racktime
  Fenders	SKS A45
  Bell	Billy

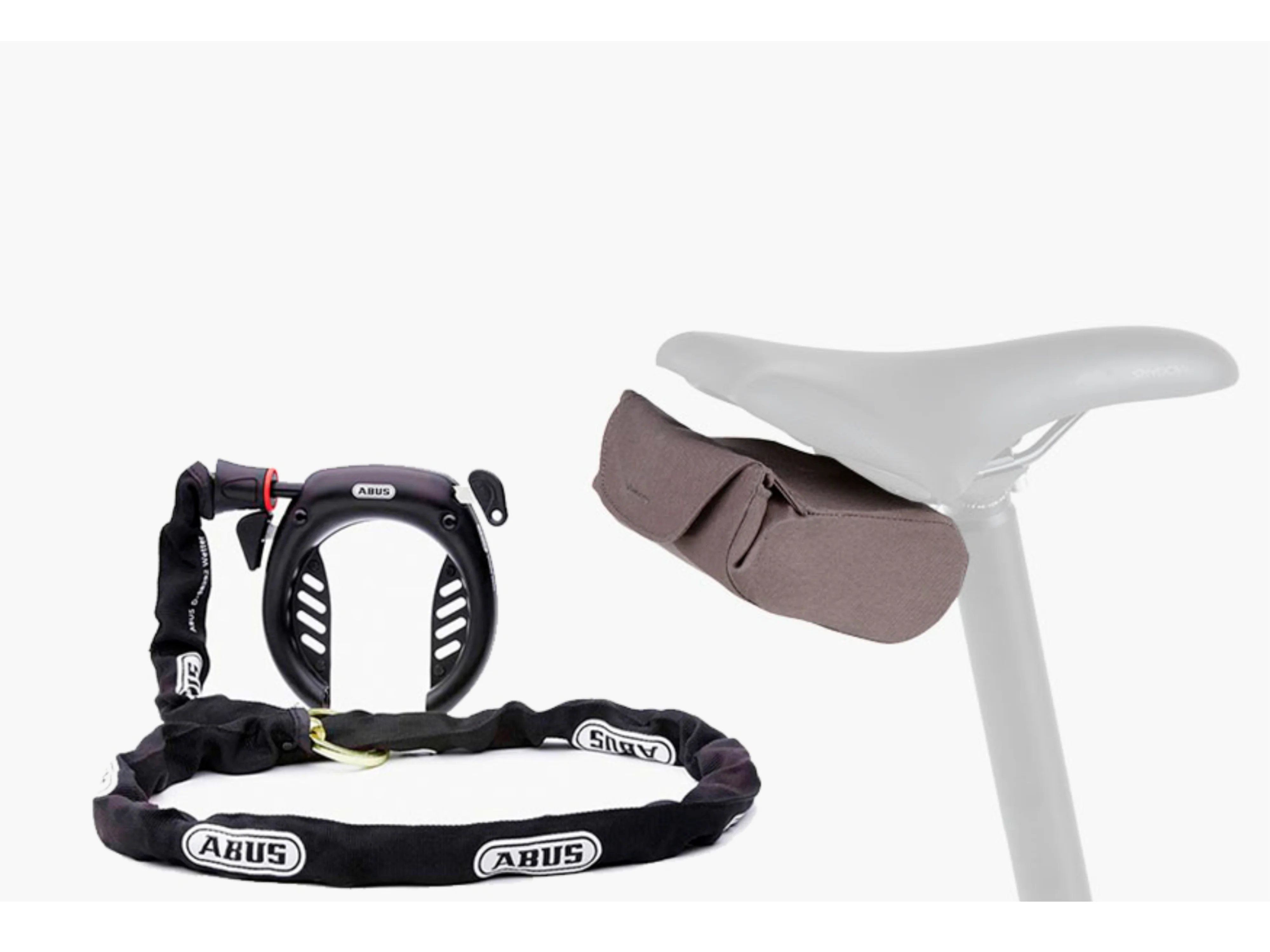

  Lock	ABUS Shield X+

•


  	45	53
  Height	5'3" - 5'9"	5'7" - 6'1"
  Top tube length [cm]	54	57
  Reach [cm]	36	38,5
  Stack [cm]	62,5	64
  Head tube angle [°]	69	70
  Seat tube angle [°]	74	74
  Trail [mm]	88	82
  Wheelbase [cm]	108,5	110,5
  Bottom bracket height [cm]	27,5	27,5
  Stand-over height [cm]	74,5	76
  Chainstay length [cm]	47	47
  Overall length [cm]	178	179,5
  Wheel size ['']	28	28
  Head tube length [mm]	140	150
  Front suspension travel [mm]	63	63
  Rear dropout width [mm]	135	135
  Gear ratio [m]	2,18-8,30	2,18-8,30
  Weight [kg]	23,3	23,6
  Weight [lbs]	51.3	52
  Gross vehicle weight rating [kg]	140	140
  Weight rating: Rear Luggage rack [kg]	20	20

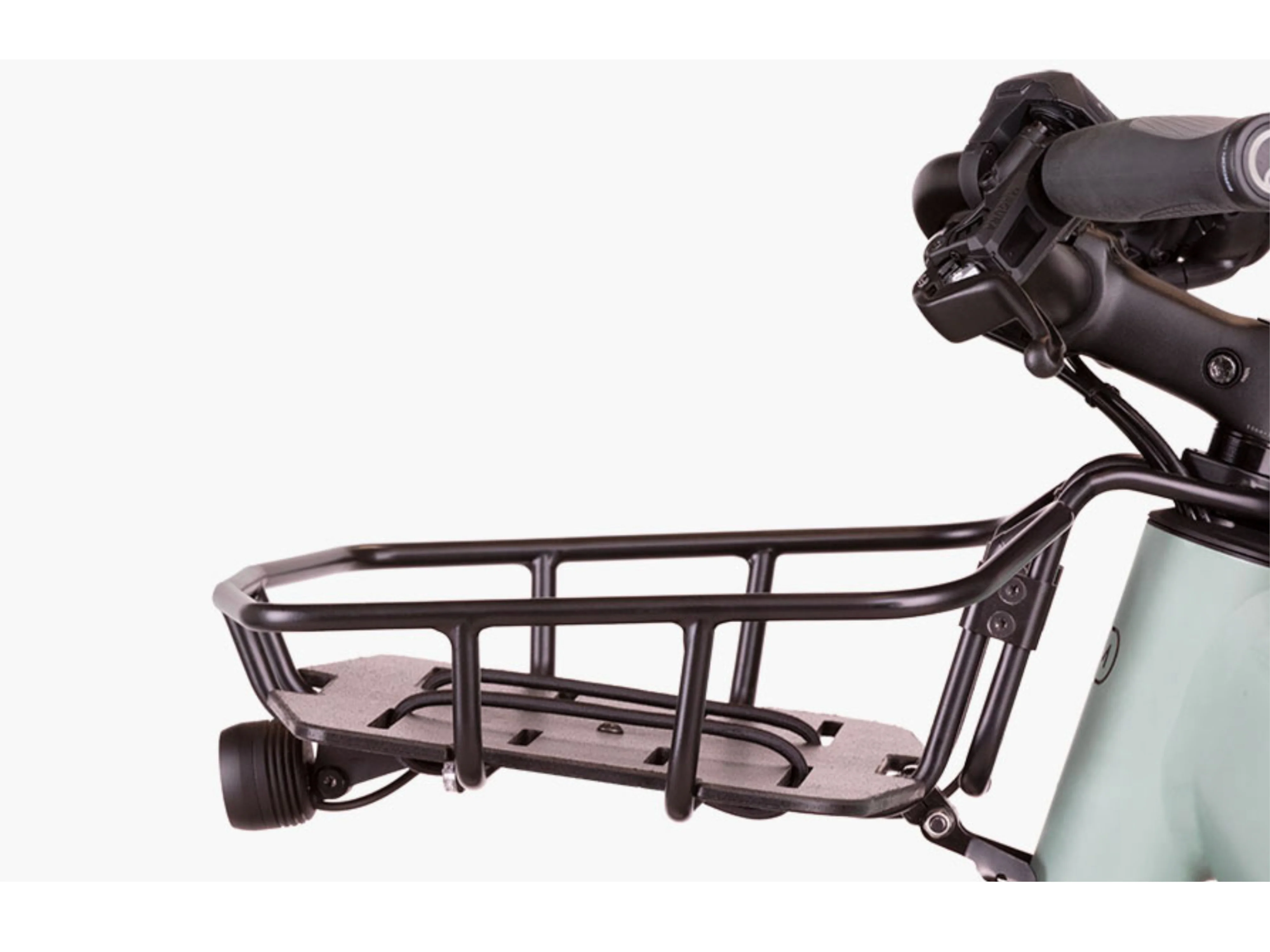

  Weight rating: Handlebar bag/basket [kg]	5	5
  Childseat compatibility	Yes	Yes
  Trailer compatibility: Single wheel/single attachment point	Yes	Yes
  Trailer compatibility: Two wheel/single attachment point	Yes	Yes
  Compatibility: Tagalong trailer bike	Yes	Yes
