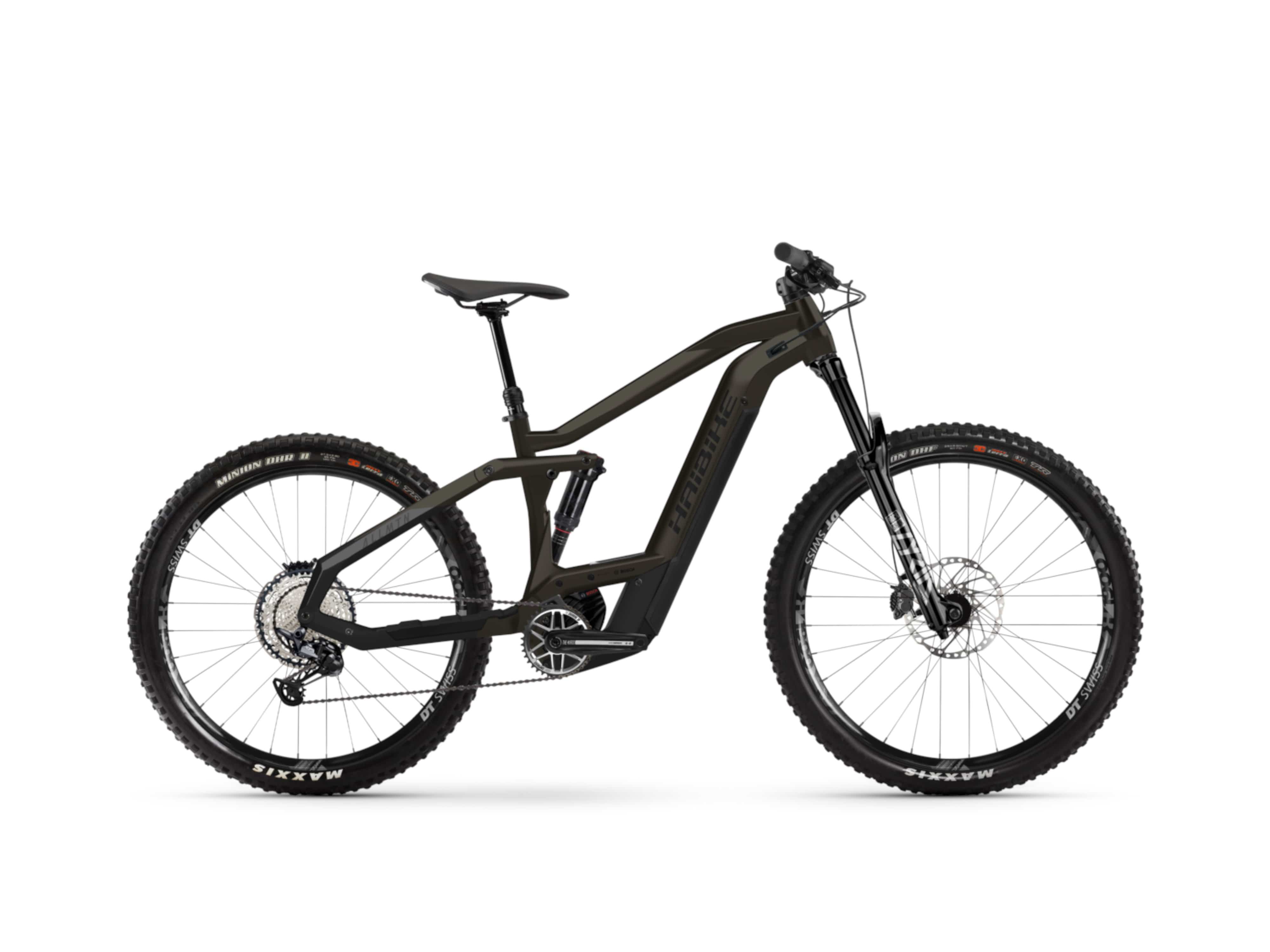

Haibike AllMtn 5

The Full Scoop on the Haibike AllMtn 5

• Description
• Motor System
• Components
• Extras
• Geometry

•
  The AllMtn 5. Getting uphill easily and downhill quickly.  Giving you the ability to get the most out of yourself and your bike.

• Components subject to manufacturer changes

• Motor	Bosch Gen4 Performance CX, 250W, 75Nm, 20 mph
  Battery	Bosch PowerTube 625Wh
  Display	Bosch Purion

• Frame	Aluminum 6061, thru-axle M12 (1.75) x 148mm, disc brake Post Mount, Travel: 150mm
  Rear Shock	RockShox Deluxe Select + RT, air
  Fork	Rockshox, Lyrik Ultimate RC2, air, Travel: 160mm, aluminum steerer tube 1 1/8 ̋ - 1 1/2 ̋ tapered, thru-axle
  Headset	A-Head, Tapered
  Cranks	Haibike Forged Aluminum
  Drivetrain	Shimano M8100SGS XT, 12-speed, Shadow Type
  Shifter	Shimano SLX, rapidfire plus
  Cassette	Shimano, M7100, SLX, 10-51 teeth
  Chain	Shimano M7100, SLX
  Front Hub	DT Swiss H1900, 110mm boost, 15mm thru axle
  Rear Hub	DT Swiss H1900, 148mm boost, 12mm thru axle, 3 pawl stainless steel freehub
  Rims	DT Swiss H1900, 29", 35mm width
  Tires	Maxxis Minion DHF, 29 ̋ x 2.50 ̋ Maxxis Minion DHR II, 27 ̋ x 2.80 ̋
  Brakes	Shimano M8020, XT, 203mm / TRP G-Spec rear, 180mm
  Brake Levers	Shimano M8000
  Handlebar	Haibike Components TheBar +++ Gravity 780mm
  Stem	Haibike Components TheStem 2, A-head, Bar bore: 31.8mm
  Seat	Selle Royale Vivo
  Seatpost	JD-YSP18JL, telescope, 31.6mm
  Pedals	MTB Freeride pedal aluminum

• Grips

  Haibike MTB

• 41cm	Small
  44cm	Medium
  47cm	Large
  50cm	X-Large
