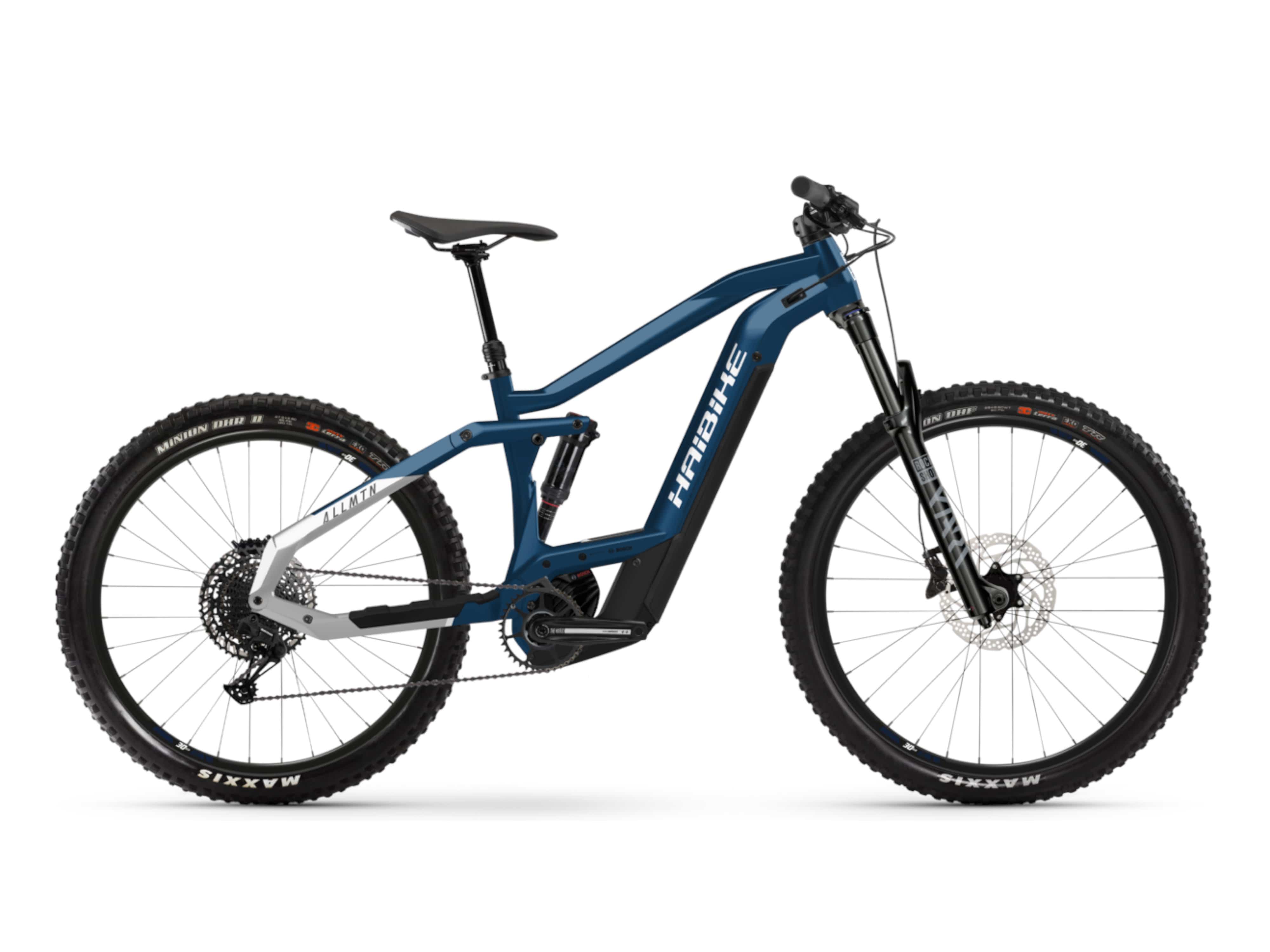

Haibike AllMtn 3

The Full Scoop on the Haibike AllMtn 3.0

• Description
• Motor System
• Components
• Extras
• Geometry

•
  An all-round e-mountain bike for every terrain: the AllMtn 3.0. Finding new trails and creating new adventures has just become easier, with this aggressively fun thrill seeker.

• Components subject to manufacturer changes

• Motor	Bosch Gen4 Performance CX, 250 W, 75 Nm, 20 mph
  Battery	Bosch PowerTube 625 Wh
  Display	Bosch Purion

• Frame	Aluminum 6061, thru-axle M12 (1.75) x 148 mm, disc brake Post Mount, Travel: 150 mm
  Rear Shock	RockShox Deluxe RT, air
  Fork	RockShox Yari RC Lockout, air, Travel: 160 mm, aluminum
  Headset	A-Head, Tapered
  Cranks	Haibike Forged Aluminum
  Drivetrain	SRAM SX Eagle, 12-speed
  Shifter	SRAM SX Eagle, trigger
  Cassette	SRAM PG1210, 11-50 teeth
  Chain	SRAM SX Eagle
  Front Hub	Shimano MT400, 15 mm thru axle, Centerlock disc, 32h
  Rear Hub	Shimano MT400, 12 mm thru axle, Cassette, Centerlock disc, 32h
  Rims	Alex MD30, eyed, double-walled rim, aluminum
  Tires	Maxxis Minion DHF, 29 ̋ x 2.50 ̋ Maxxis Minion DHR II, 27 ̋ x 2.80 ̋
  Brakes	Shimano MT420, Hydraulic disc, 4 Piston, 203 mm / 180 mm F/R rotors
  Brake Levers	Shimano MT401 Hydraulic
  Handlebar	Haibike Components TheBar ++ 780 mm
  Stem	Haibike Components TheStem 2, A-head, Bar bore: 31.8 mm
  Seat	Selle Royale Vivo
  Seatpost	XLC AllMtn, Remote, telescope, 31.6 mm
  Pedals	MTB platform pedal aluminum

• Grips

  Haibike MTB

• 41 cm	Small
  44 cm	Medium
  47 cm	Large
  50 cm	X-Large
