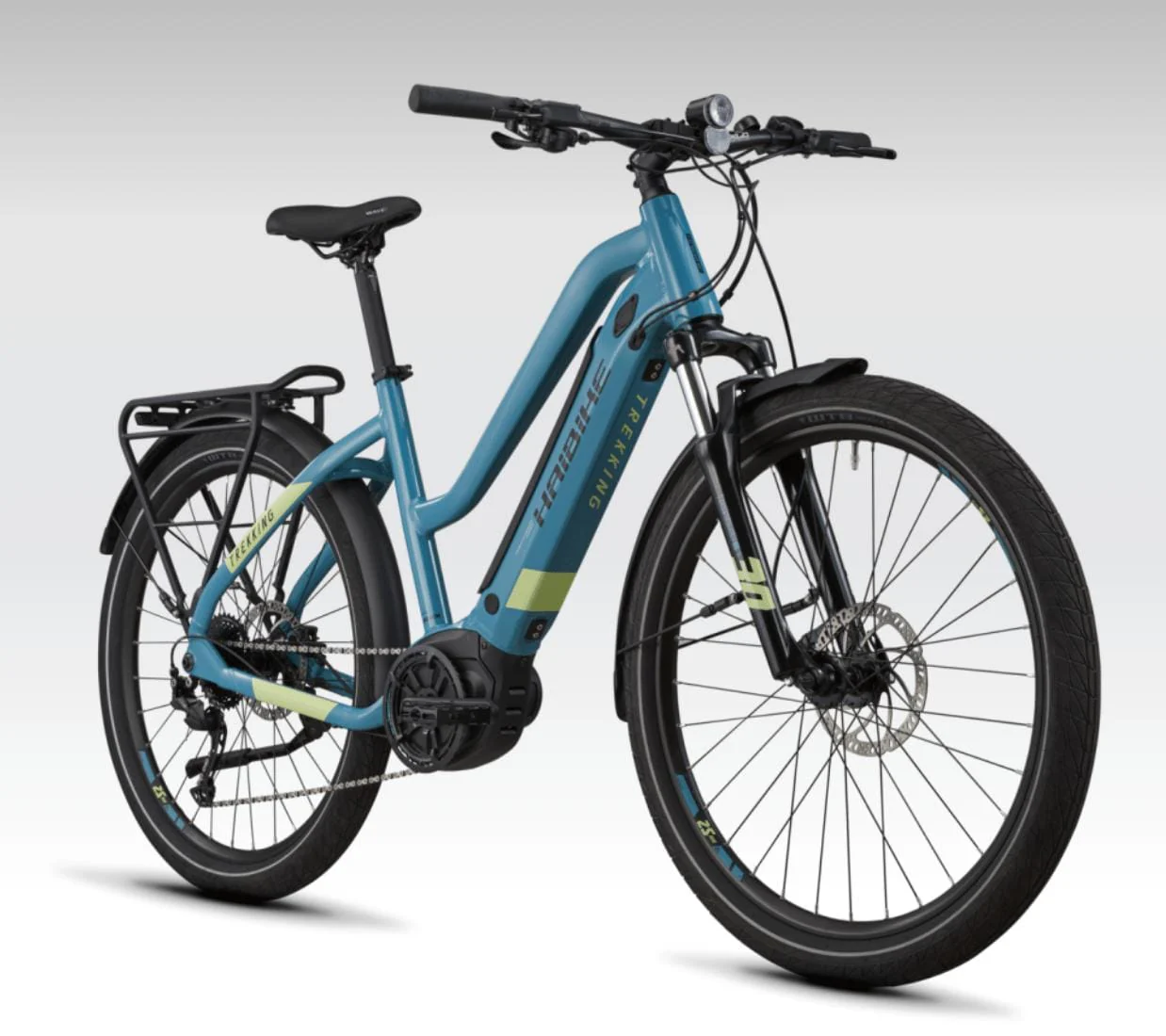

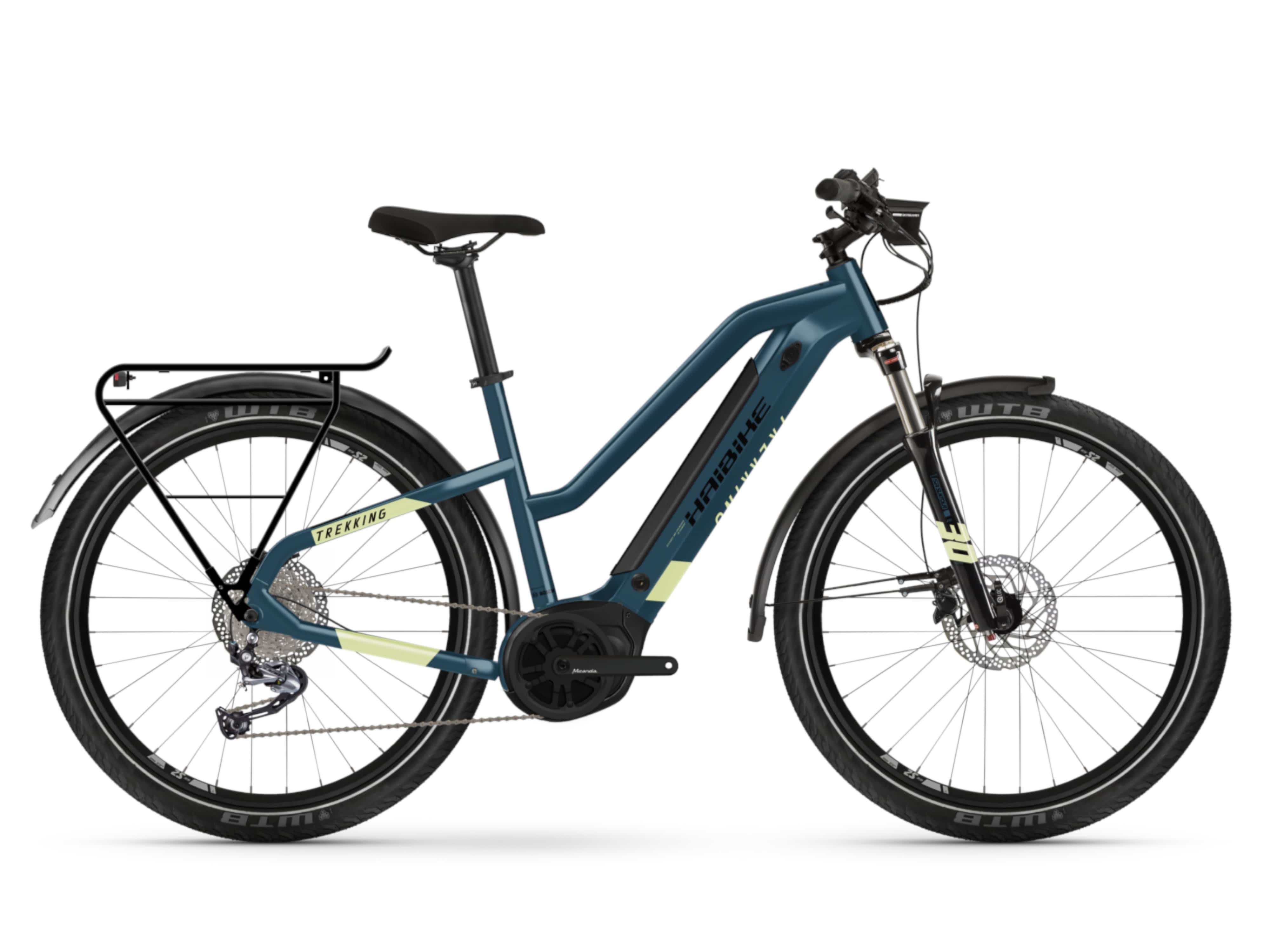

Haibike Trekking 5 Step Thru

The Full Scoop on the Haibike Trekking 5 Step Thru

• Description
• Motor System
• Components
• Extras
• Geometry

•
  A bike for every day: Whether commuting to work or enjoying a weekend ride...the Trekking series will get you comfortably and safely to your goal. With a Bosch Performance line motor, lights, fenders, kickstand and rack as standard equipment - you are ready for any adventure in the urban jungle.


• Components subject to manufacturer changes

• Motor	Bosch Performance Line Cruise, 65Nm, 20 mph
  Battery	Bosch PowerTube 500Wh
  Display	Bosch Purion

• Frame	Aluminum 6061, with Thru Axle 142x12mm Drop Outs, disc brake Post Mount

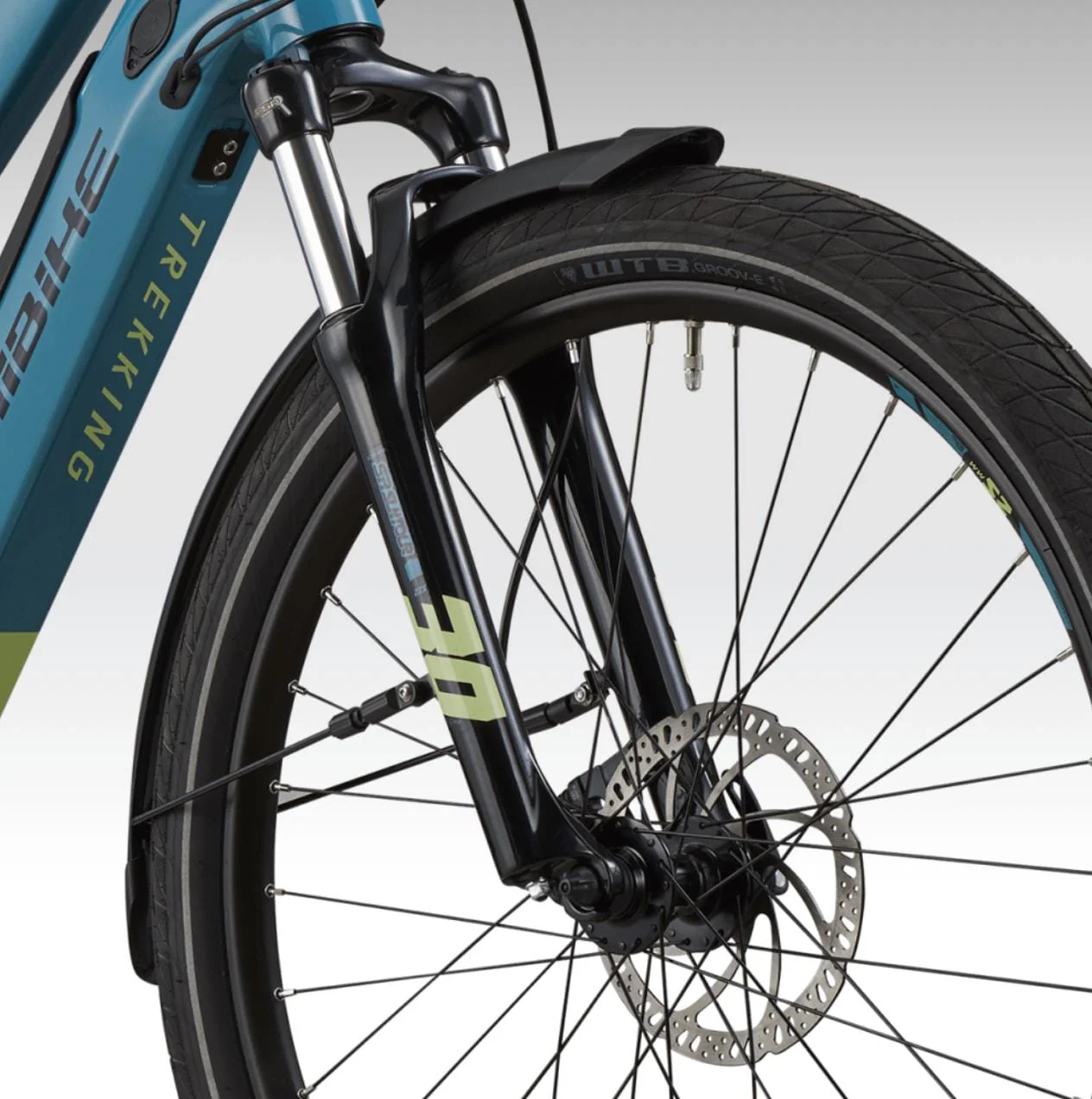

  Fork	SR Suntour XCM 65mm
  Headset	A-Head, Tapered
  Cranks	Haibike Forged Aluminum

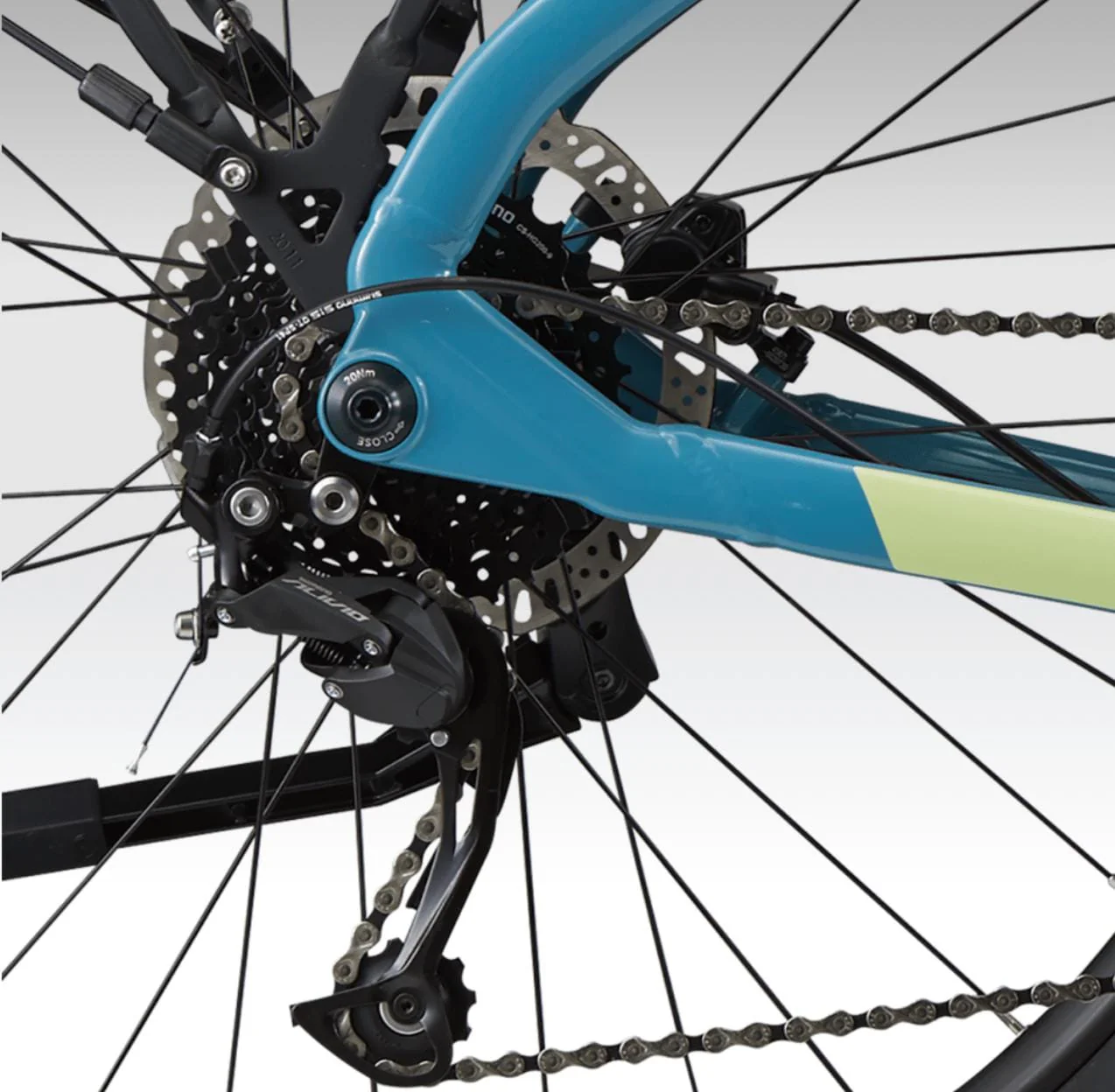

  Drivetrain	Shimano Alivio , 9 Speed, Shadow Type
  Shifter	Shimano Alivio RapidFire Plus, 9 Speed
  Cassette	Shimano HG-200 11-36 Tooth, 9 Speed
  Chain	KMC e9S 9 Speed
  Front Hub	Haibike TheHub ++ Disc, 32 Hole, Quick Release, Black
  Rear Hub	Haibike TheHub ++ Disc,Cassette, 12mm thru axle, 32 Hole, Black
  Rims	Alex MD25 27.5 ̋, 35mm
  Tires	WTB Groove-E with Reflective sidewall, X 27.5x2.4
  Brakes	Tektro HD-T275,Hydraulic disc, with 180mm F&R rotors
  Brake Levers	Tektro Hydraulic Levers
  Handlebar	Haibike Trekking 38mm Rise, 720mm
  Stem	XLC Components
  Seat	Selle Royale Wave
  Seatpost	XLC Components
  Pedals	Haibike LowProfile Aluminum  Platform

• Grips

  Haibike MTB W/Lock

• 44cm	Medium
  48cm	Large
  52cm	X-Large
