Cube Stereo Hybrid 160 HPC TM

The Full Scoop on the Cube Stereo Hybrid 160 HPC TM

• Description
• Motor System
• Components
• Extras
• Geometry

• The Cube Stereo Hybrid 160 HPC TM's frame is designed to blend world-class trail-taming abilities with superb handling and more range than ever before. With the high-capacity 750Wh battery and fourth-generation Bosch drive unit housed entirely inside the down tube, the Cube Stereo Hybrid 160 HPC TM as powerful as it is good to look at. Hidden by a cover with shock protection, push-button access and a hidden lock, the battery is both secure and easy to access. Integrated cable routing removes cable holes from the head tube area for greater strength and a neater appearance. The Cube Stereo Hybrid 160 HPC TM's race-inspired geometry gives you the advantage you need to show the trail exactly who's boss.


  *Components subject to manufacturer changes


• Motor	Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System
  Battery	Bosch PowerTube 750
  Display	Bosch Kiox 300
  Charger	Bosch 4A

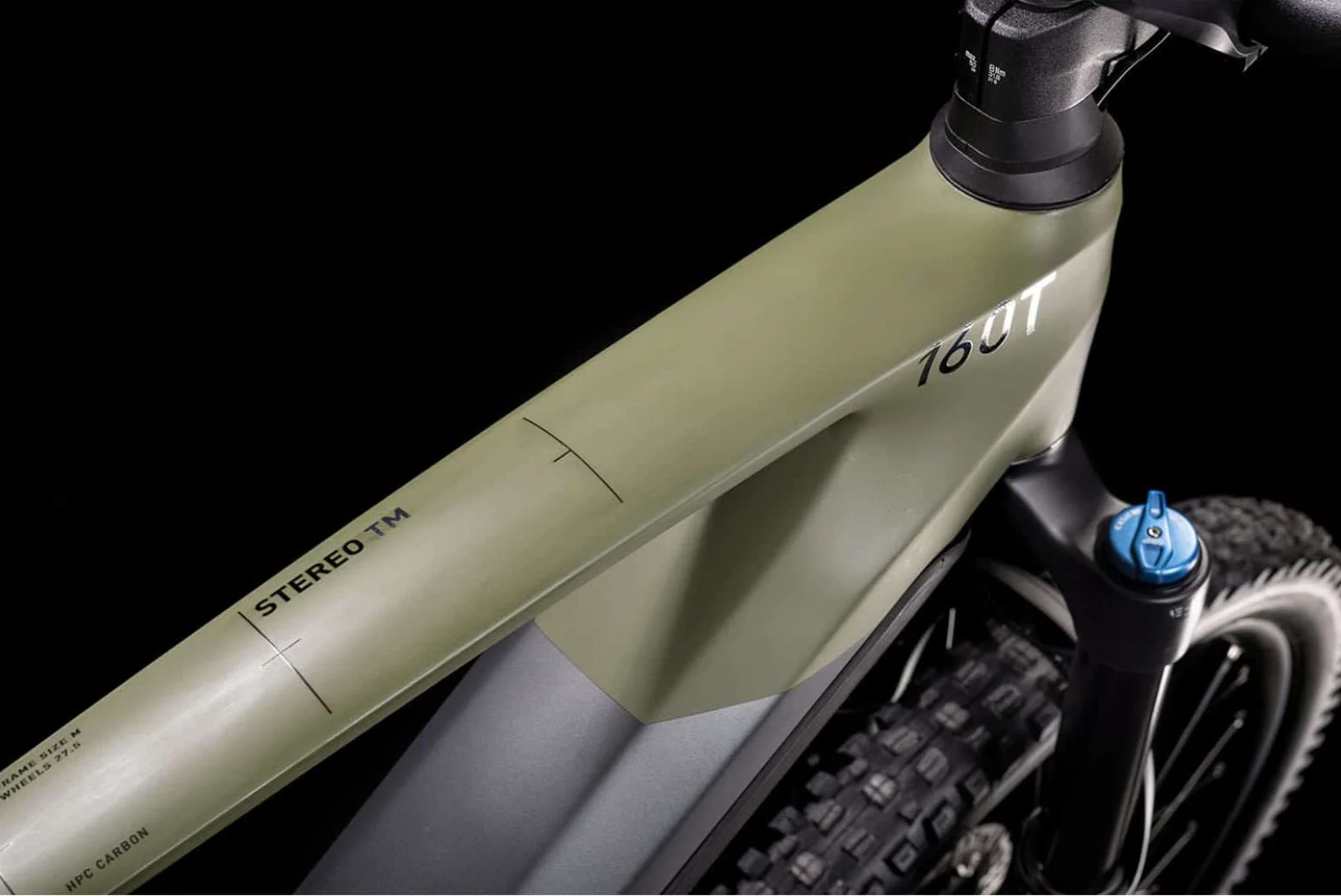

• Frame	C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing
  Fork	Fox 38 Float Performance GRIP, 3-Position w/Micro Adjust, Tapered, 15x110mm, E-Bike Tune, 170mm

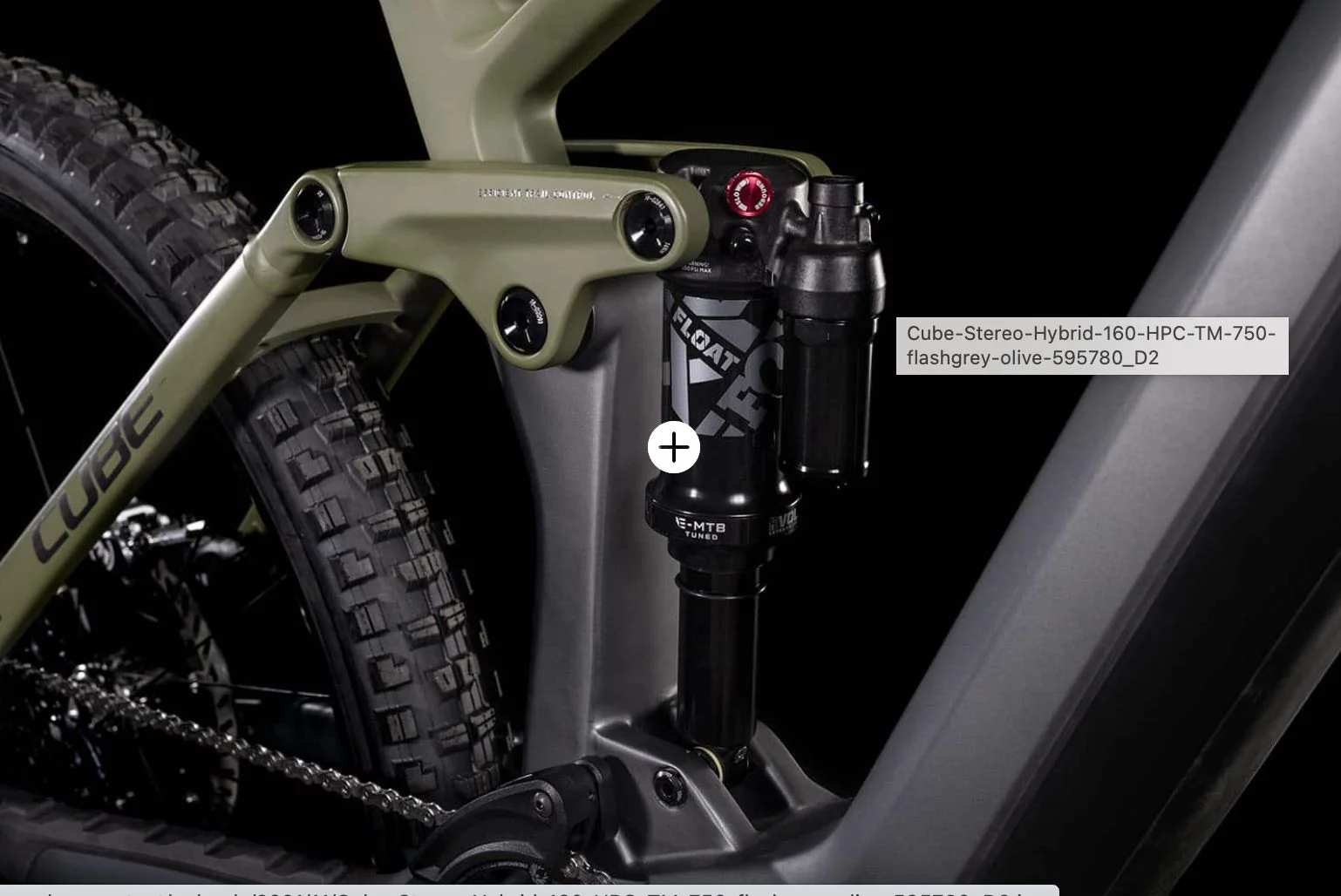

  Rear Shock	Fox Float X Performance, 205x65mm, Trunnion Mount, Adjustable LSR w/ 2-Pos. Lever
  Front Brake	Magura MT7, Hydr. Disc Brake (203/203)
  Rear Brake	Magura MT7, Hydr. Disc Brake (203/203)

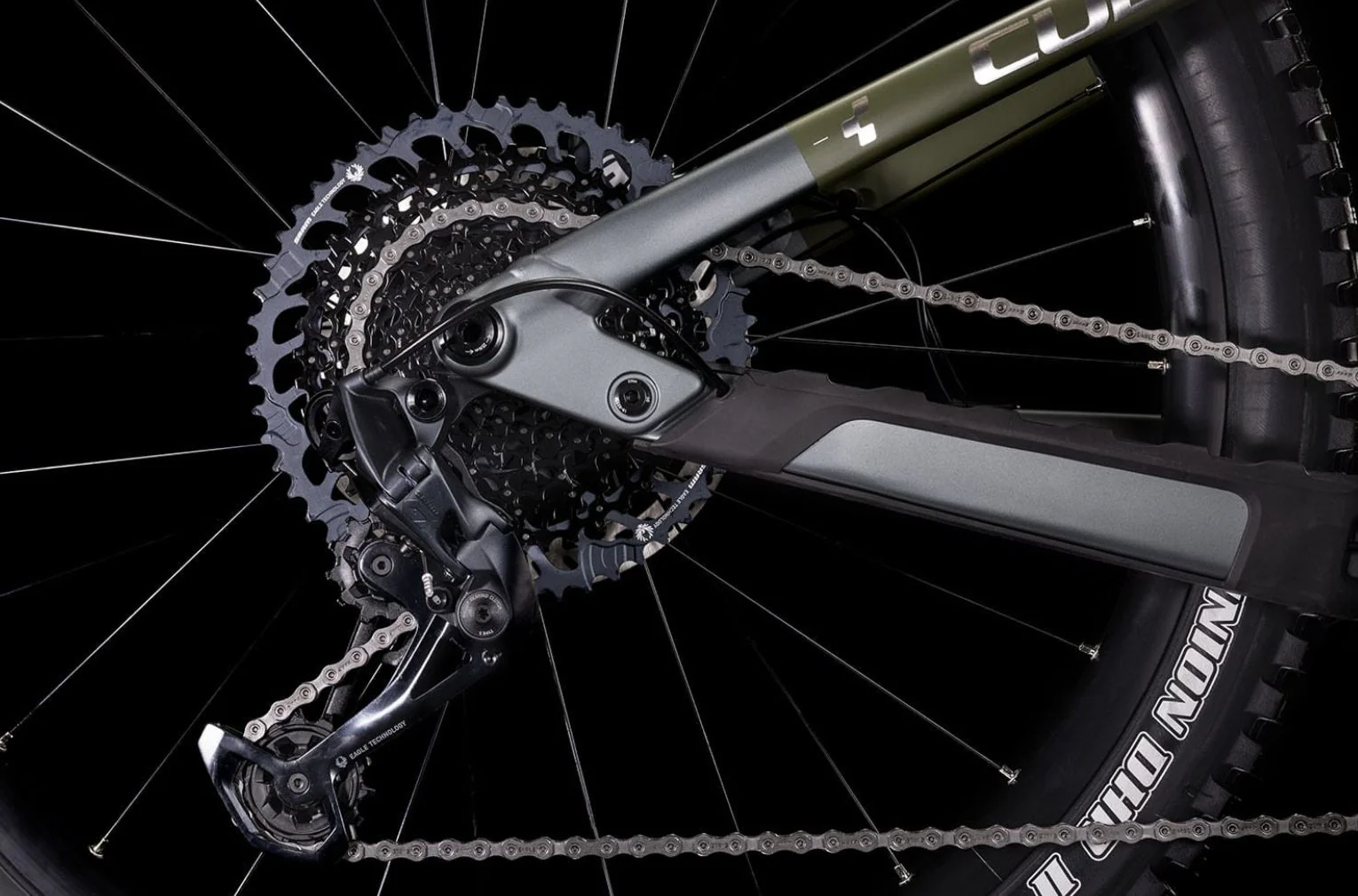

  Rear Derailleur	Sram GX Eagle™, 12-Speed
  Shift Levers	Sram GX Eagle™ Trigger, Single Click
  Chain	Sram NX Eagle™
  Cassette	Sram XG-1275 Eagle™, 10-52T
  Crankset	ACID E-Crank, 165mm, 36T
  Chain Ring	Spec not provided
  Chain Guard	Spec not provided
  Rims	Newmen Performance 30, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
  Front Hub	Spec not provided
  Rear Hub	Spec not provided
  Front Tire	Maxxis Assegai, MaxxGrip/EXO+, Tubeless Ready, 2.5 WT
  Rear Tire	Maxxis Minion DHR II, MaxxGrip/DoubleDown, Tubeless Ready, 2.4 WT
  Handlebar	Newmen Evolution SL 318.25, 800mm
  Stem	CUBE Performance Stem, E-MTB, 31.8 mm
  Headset	ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
  Grips	ACID Disrupt, Soft Compound

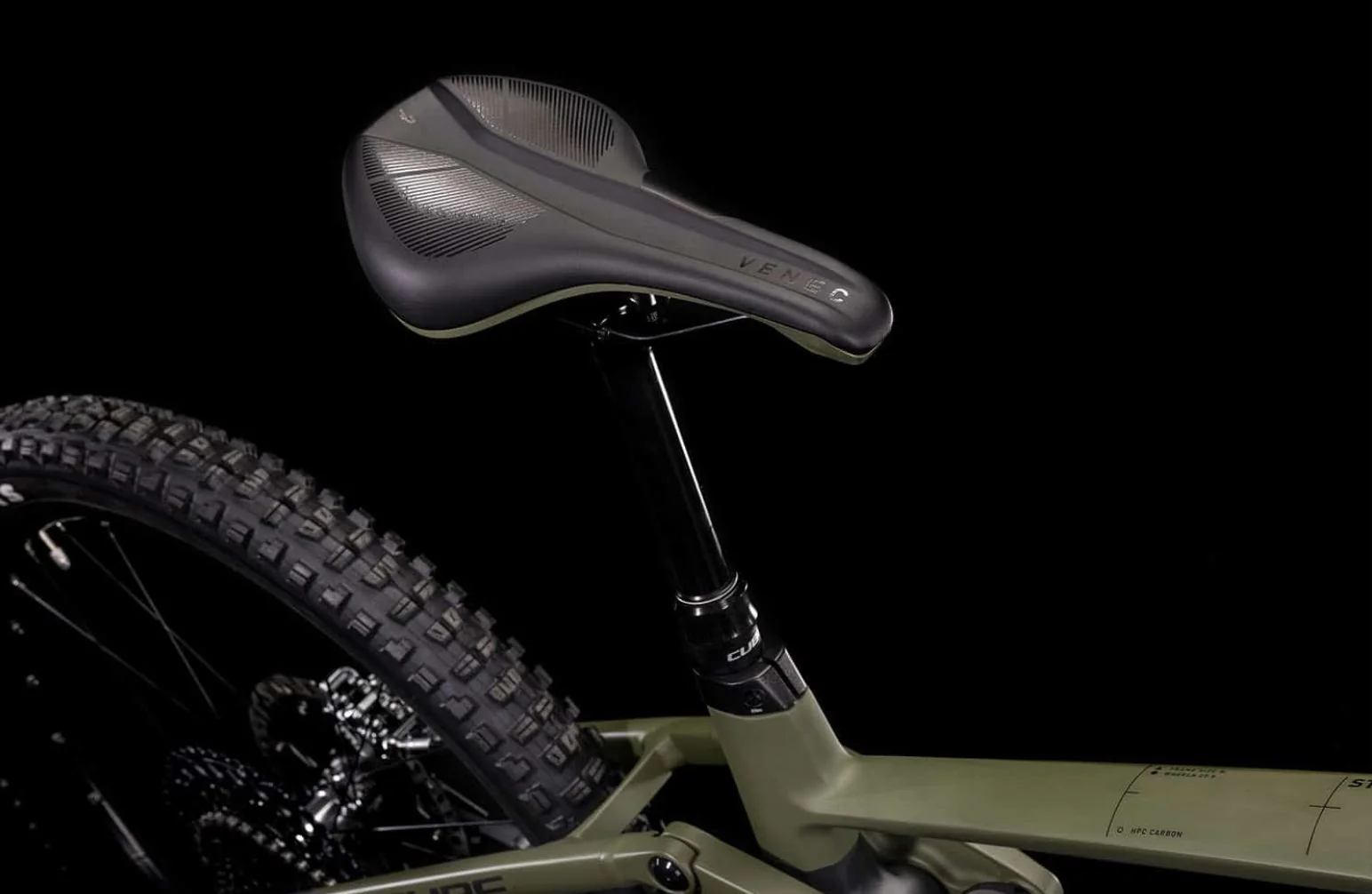

  Saddle	Natural Fit Venec
  Seatpost	CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm

• Pedals	Not applicable
  Front Light	Not applicable
  Rear Light	Not applicable
  Kickstand	Not applicable
  Rear Carrier	Not applicable
  Fenders	Not applicable
  Bell	Not applicable
  Lock	Not applicable
  Mirror	Not applicable

• Chart/mm
  Small	16"
  Medium	18"
  Large	20"
  X-large	22"

• Fork	Fox 38 Float Performance GRIP, 3-Position w/Micro Adjust, Tapered, 15x110 mm, 170 mm
  Shock	Fox Float DPX2 EVOL, 205x60 mm, Open/Medium/Firm mode, Trunnion Mount
  Drivetrain	Sram NX Eagle, 12-speed
  Shifters	Sram NX Eagle™ Trigger, Single Click
  Headset	Acros AZX-1030, Top Zero-Stack 1 1/2" (ZS 56 mm) , Bottom Zero-Stack 1 1/2" (ZS 56 mm)
  Stem	CUBE Performance Stem, E-MTB, 31.8 mm
  Handlebar	Newmen Evolution SL 318.25, 800 mm
  Grips	CUBE Race Grip 31 mm, 1-Clamp
  Brakes	Magura MT7, Hydr. Disc Brake (203/203)
  Crankset	eACID E-Crank, 36T, 165 mm
  Chain	Sram NX Eagle™
  Chain Guide	e*thirteen Plus e*spec
  Cassette	Sram XG-1275 Eagle, 10-50T
  Wheelset	Newmen Evolution SL E.30, 28/28 Spokes, 15x110/12x148mm, Tubeless-Ready
  Rear Tire	Maxxis Minion  DHR II, MaxxGrip/DoubleDown, Tubeless-ready, 2.4 WT
  Front Tire	Maxxis Assegai, MaxxGrip/EXO+, Tubeless ready, 2.5 WT
  Saddle	Natural Fit Venec
  Seat post	CUBE Dropper Post
